Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter service mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the display assembly.
7. Remove the display bezel.
About this task

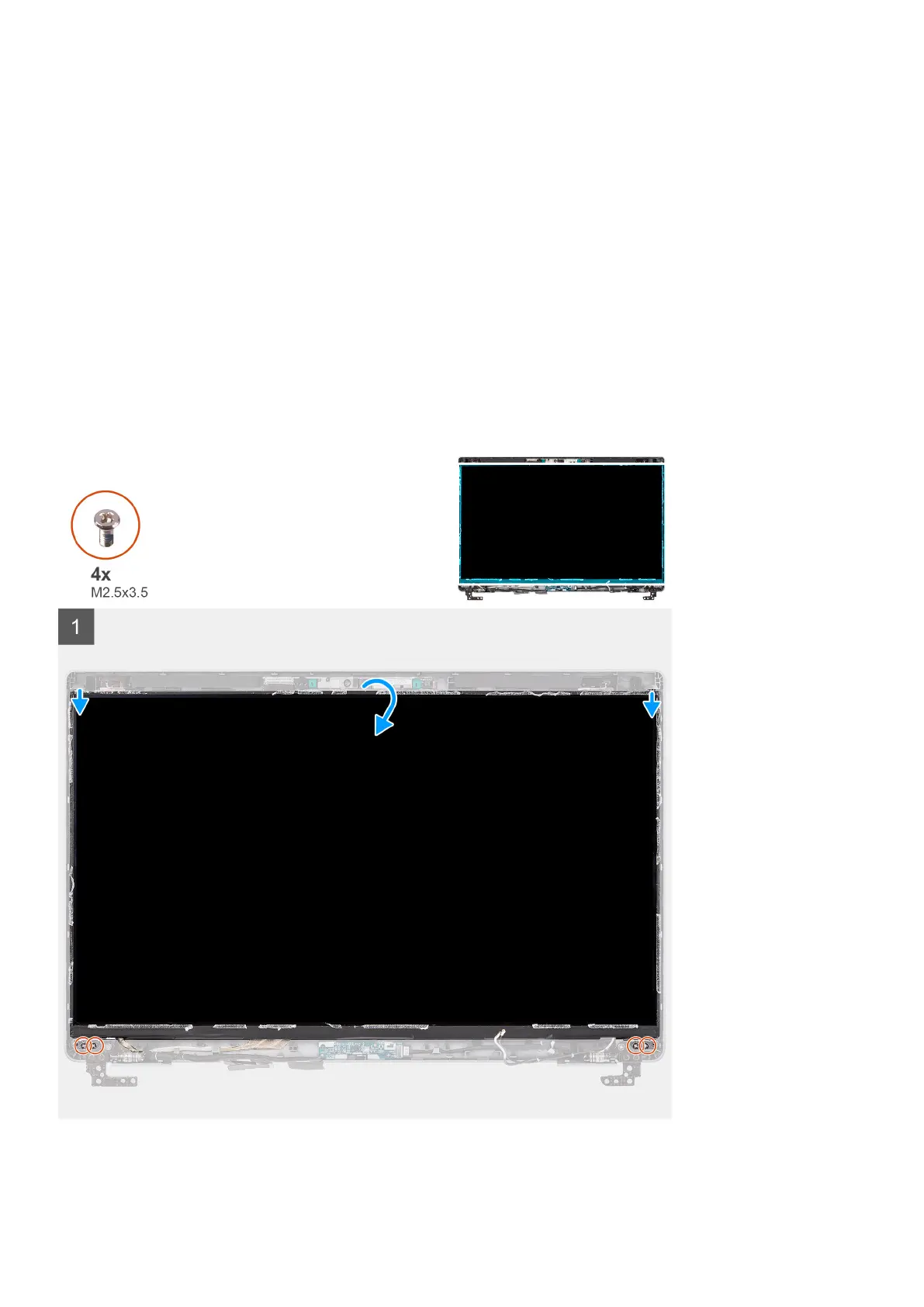

The following images indicate the location of the display panel and provide a visual representation of the removal procedure.
Removing and installing components 77
