Dell P104F002 - Page 72

Steps
1. Peel the adhesive tape and disconnect the sensor-board cable from the connector on the system board.
2. Remove the two screws (M2x3) that secure the eDP cable bracket to the system board.
3. Lift the eDP cable bracket away from the system.

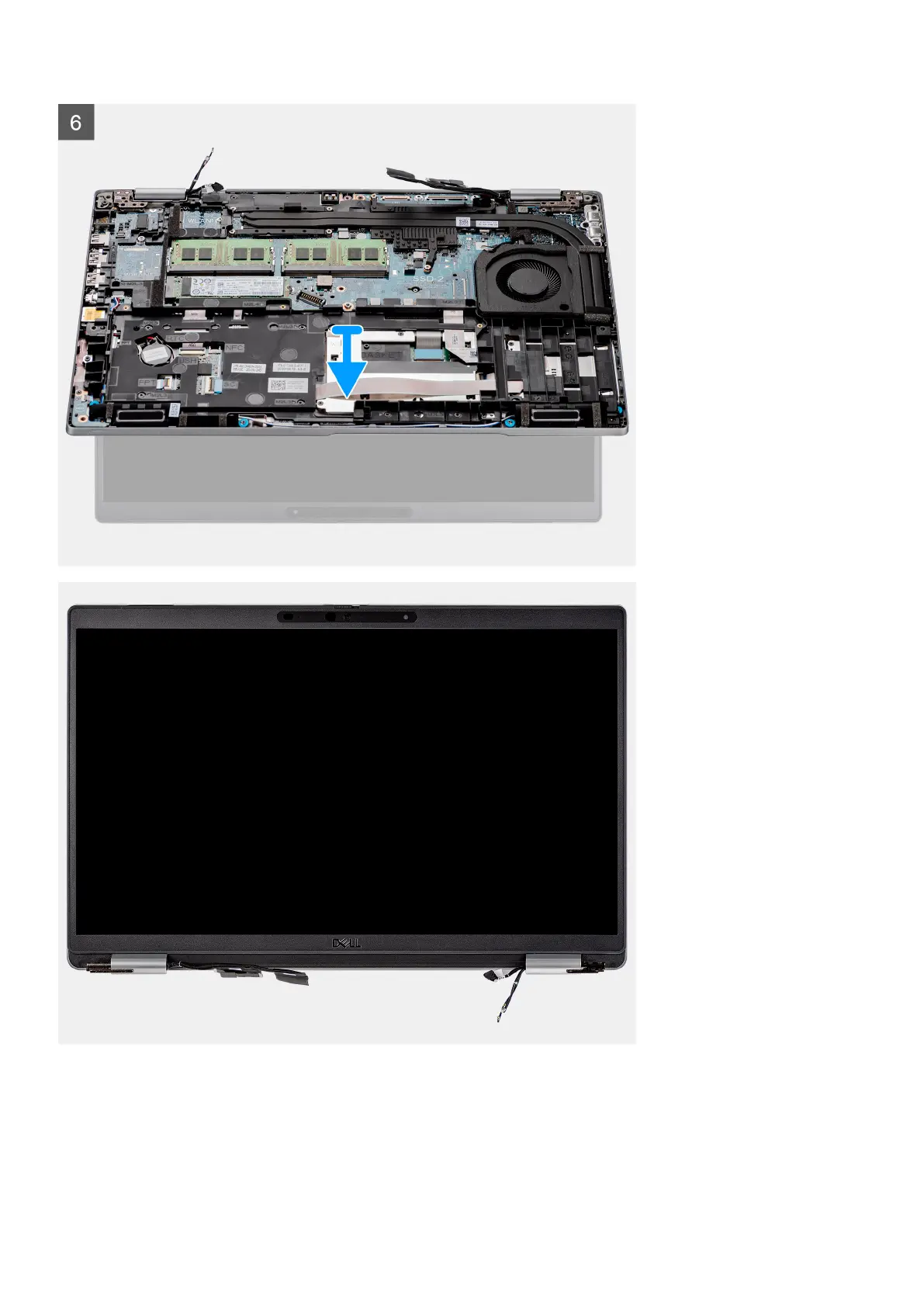

4. Peel the tape that secures the display cable to the system board.
72
Removing and installing components
