Steps

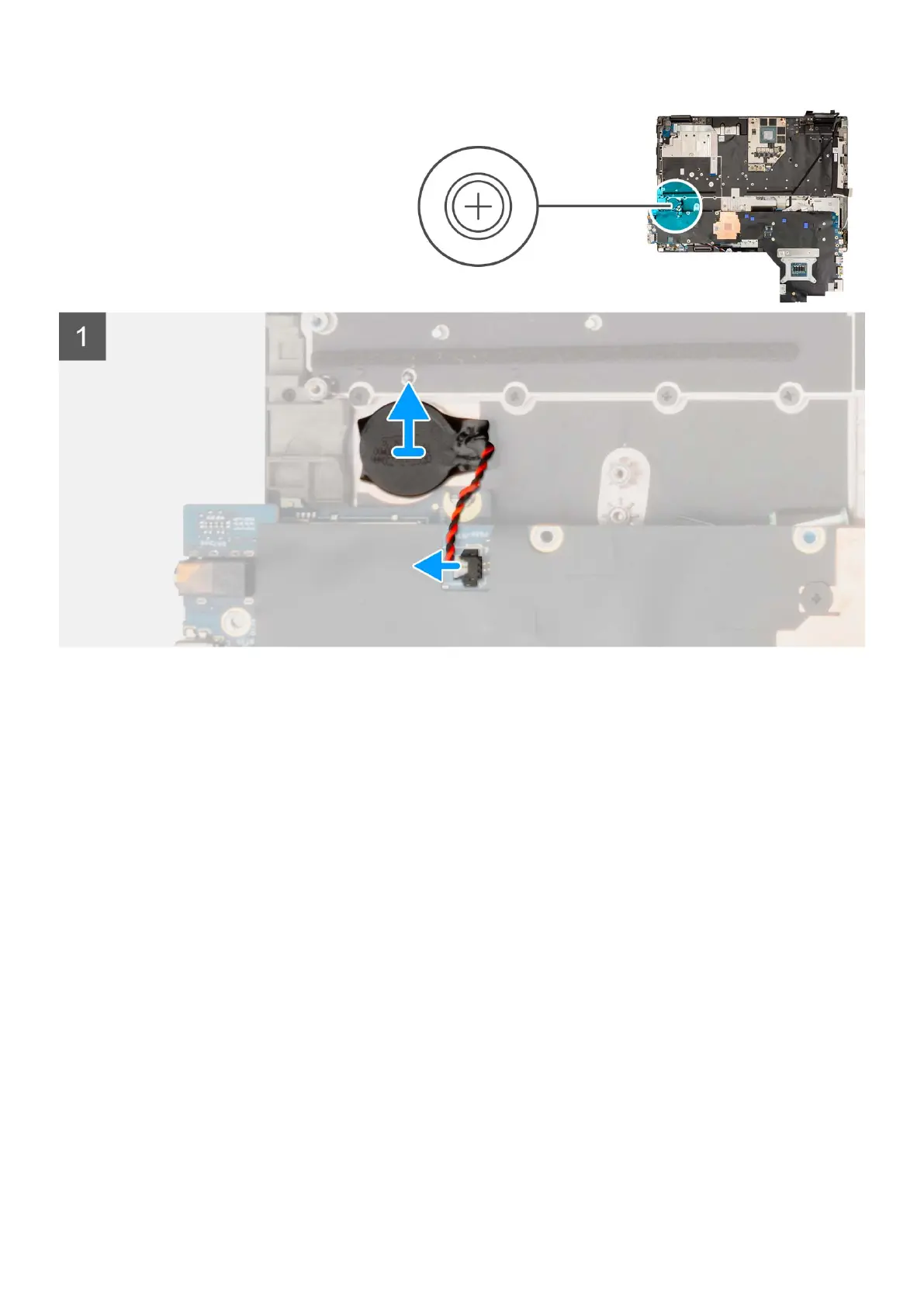

1. Flip the system board and disconnect the coin-cell battery cable from its connector on the system board.
2. Pry to remove the coin-cell battery, which is located under the system board, from the palmrest while lifting the system
board.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.
Removing and installing components
71
