Dell P127F - Installing the M.2 2230 Solid-State Drive in Slot 1

Steps
1. Remove the screw (M2x3) that secures the M.2 2230 solid-state drive to the solid-state drive bracket and palm-rest
assembly.
2. Slide and lift the M.2 2230 solid-state drive off the solid-state drive slot.
3. Remove the M.2 2230 solid-state drive mounting bracket from the palm-rest assembly.
Installing the M.2 2230 solid-state drive in Slot 1
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

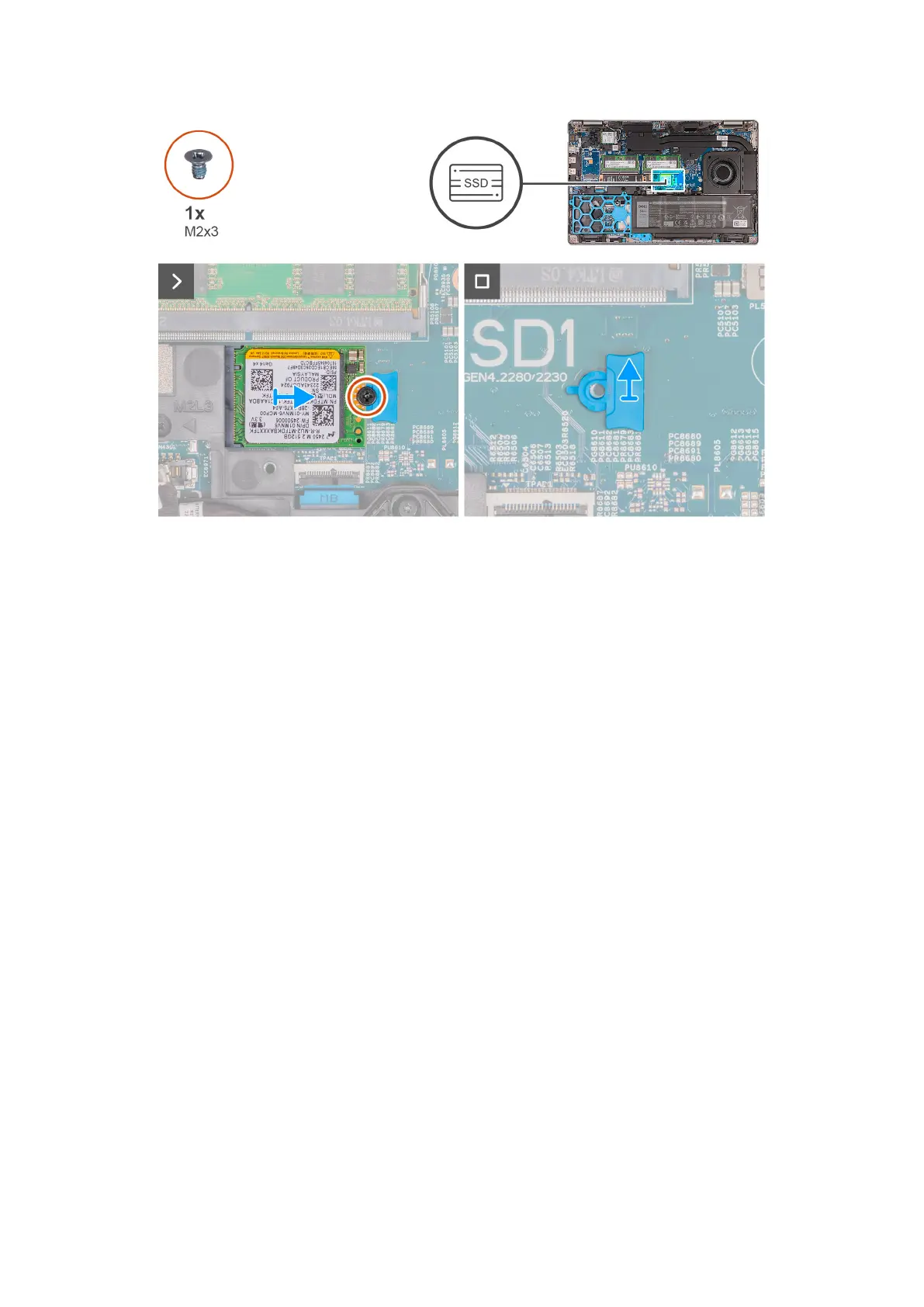

The following image(s) indicate the location of the M.2 2230 solid-state drive in Slot 1 and provides a visual representation of
the installation procedure.
