6. Install the SIM card.
7. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the base cover.
4. Remove the battery.
About this task
The following images indicate the location of the speakers and provide a visual representation of the removal procedure.

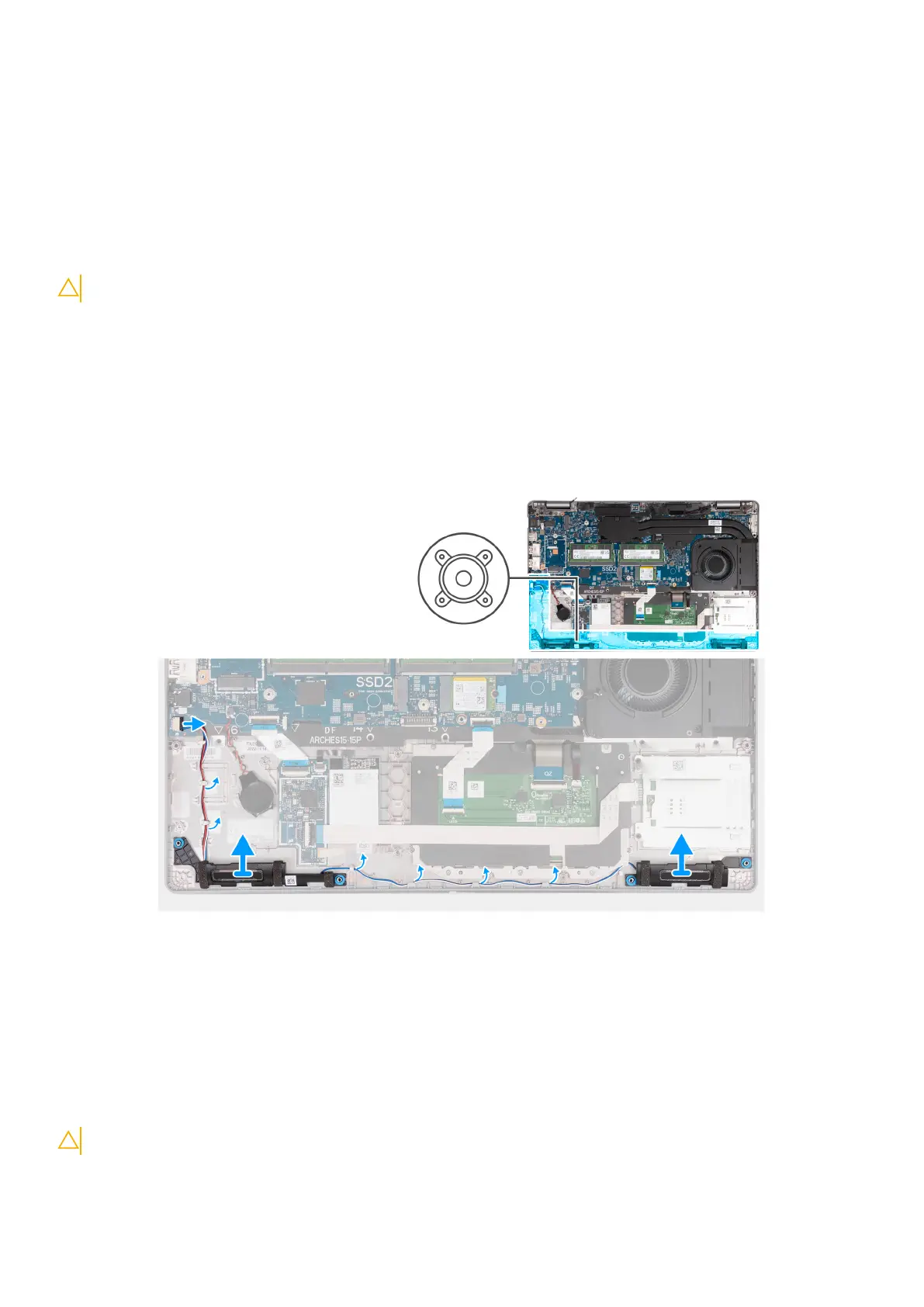

Figure 4. Removing the speakers
Steps
1. Disconnect the speaker cable from the system board.
2. Remove the speaker cables from the routing guides on the palm-rest assembly.
3. Lift the right and left speakers, along with its cable, off the palm-rest assembly.
Installing the speakers
CAUTION: The information in this section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 73
