About this task
The following images indicate the location of the assembly-inner frame and provide a visual representation of the removal
procedure.

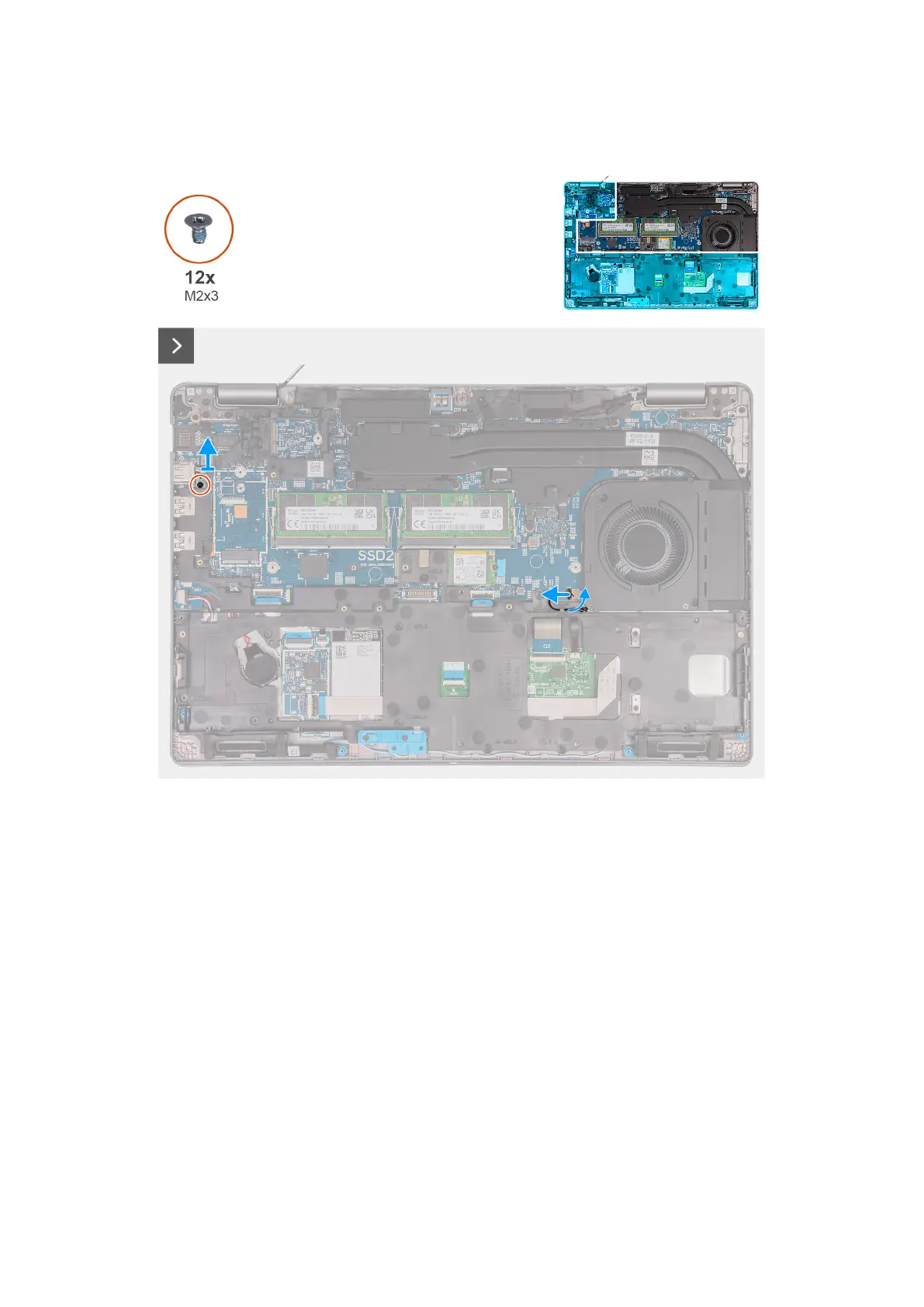

Figure 2. Inner frame removal
Removing and installing Field Replaceable Units (FRUs)
69
