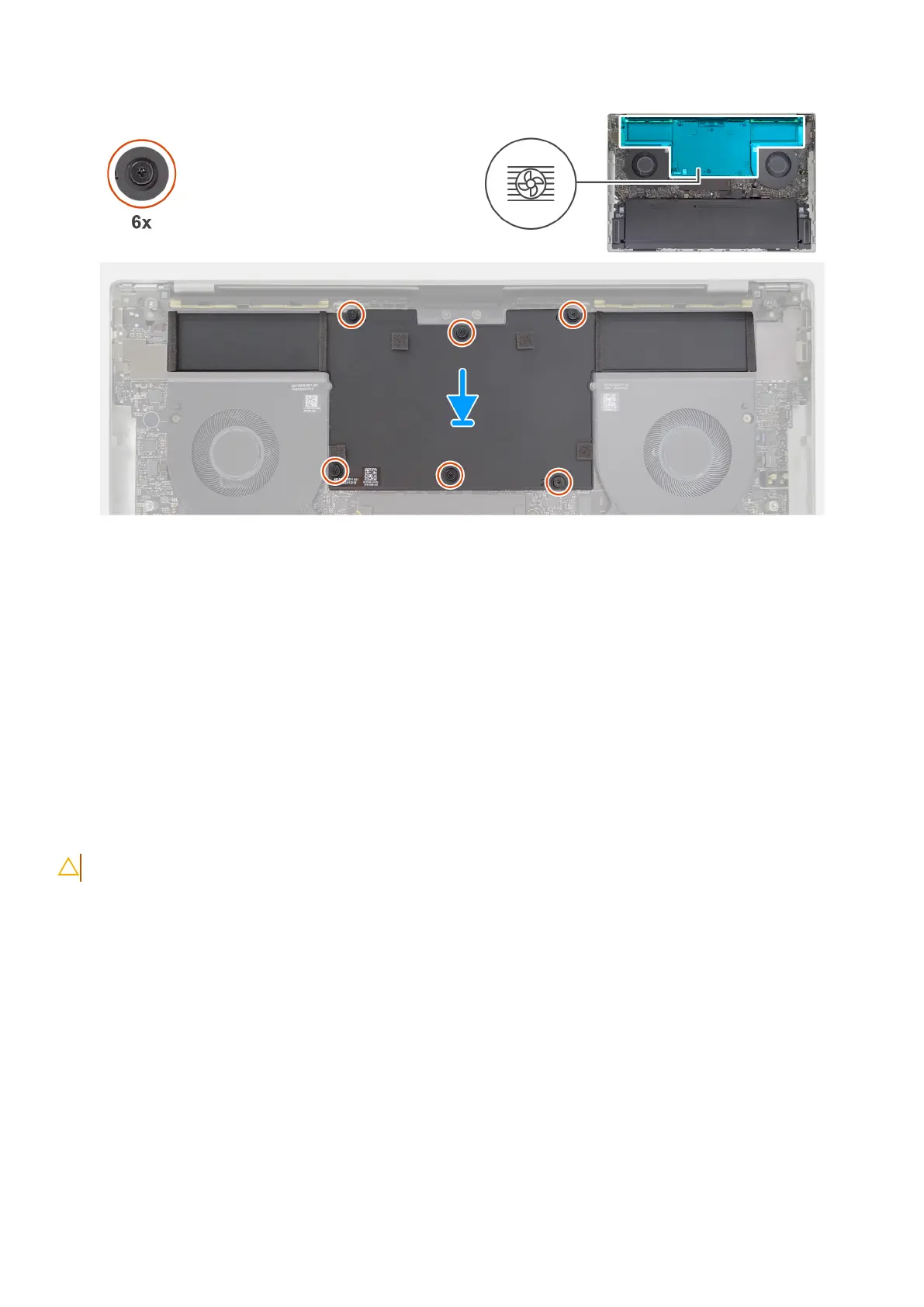

Figure 35. Installing the heat sink—Discrete GPU (Vapor Chamber)
Steps
1. Align the screw holes on the fan and heat sink with the screw holes on the system board.
2. In sequential order (1>2>3>4>5>6), tighten the six captive screws that secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless-module shield
Removing the wireless-module shield
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the wireless-module shield and provides a visual representation of the removal
procedure.
56
Removing and installing Field Replaceable Units (FRUs)
