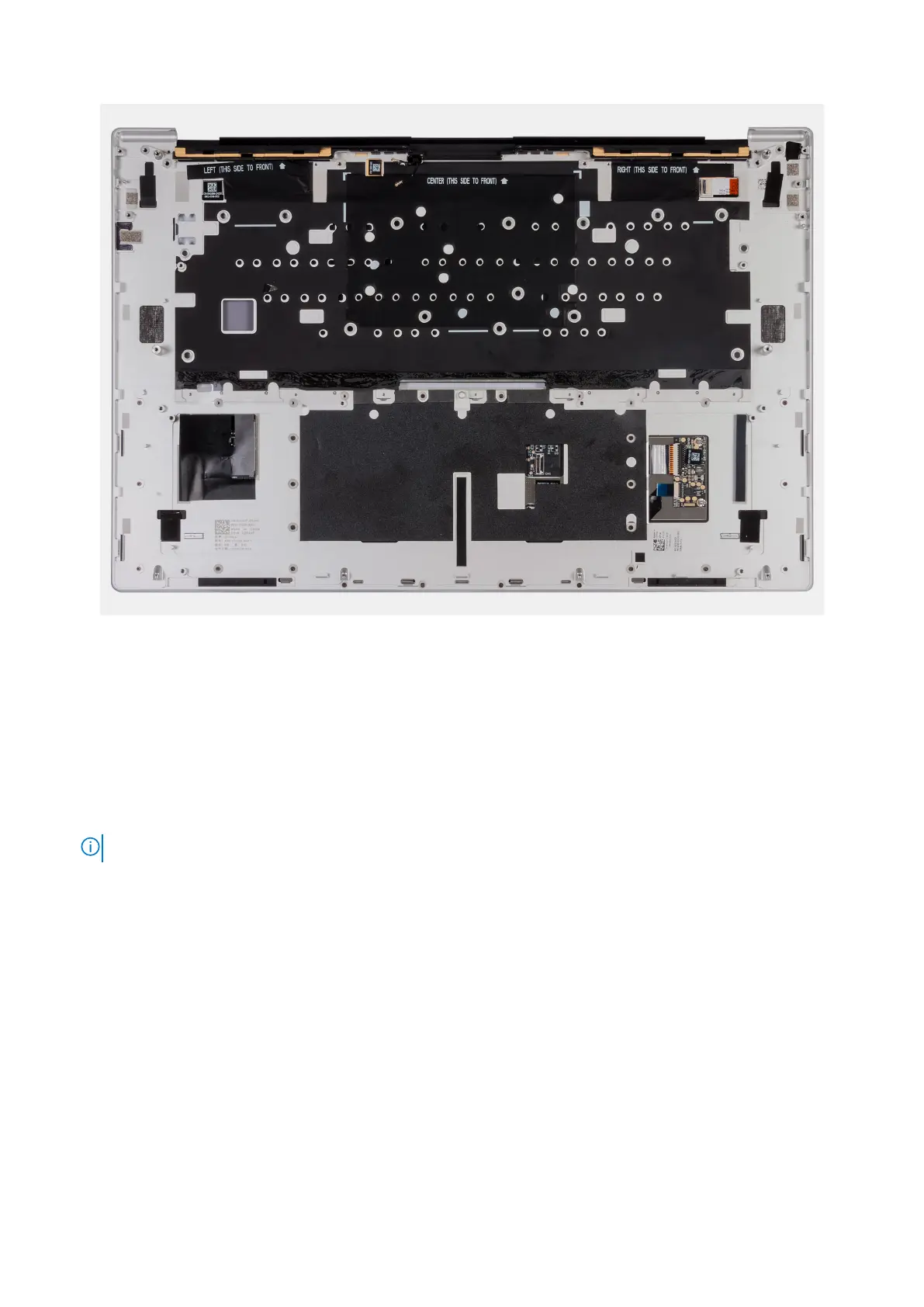

Figure 62. Palm-rest assembly
Steps
Place the palm-rest assembly on a flat surface.
Next steps
1. Install the power button with fingerprint reader.
2. Install the keyboard.
3. Install the speakers.
4. Install the system board.
NOTE: The system board can be installed along with the solid state drive.
5. Install the Type-C bracket.
6. Install the heat sink.
7. Install the fans.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
83
