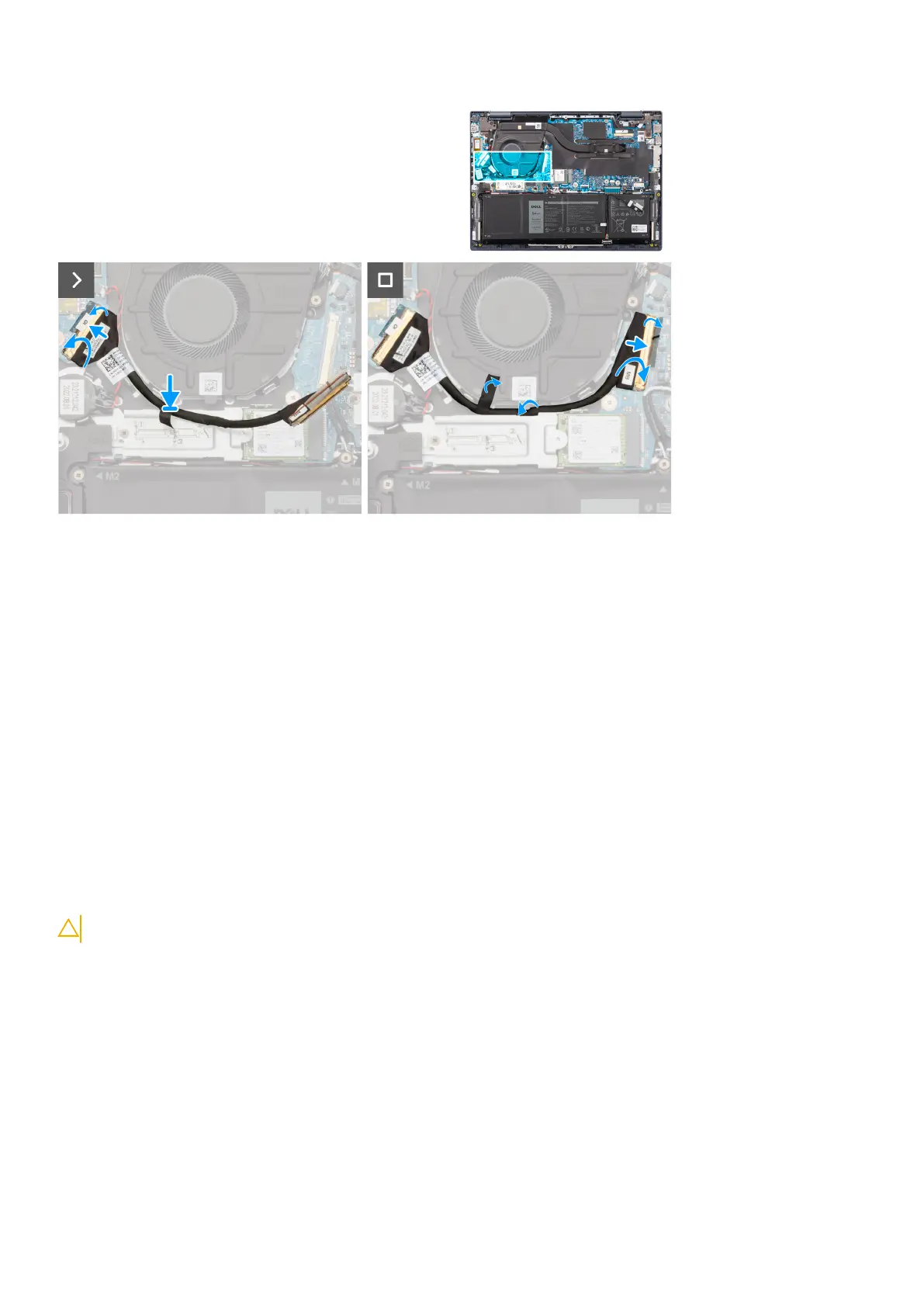

Steps
1. Connect the I/O daughter-board cable to the connector on the I/O daughter-board and close the latch.
2. Adhere the tape to secure the I/O daughter-board cable to the connector on the I/O daughter-board.
3. Carefully route the I/O daughter-board cable through the routing guides on palm-rest and keyboard assembly.
4. Connect the I/O daughter-board cable to the connector on the system board and close the latch.
5. Adhere the tape to secure the I/O daughter-board cable to the connector on the system board.
6. Adhere the tape to secure the I/O daughter-board cable to the fan.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
I/O daughter-board
Removing the I/O daughter-board
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the I/O daughter-board cable.
About this task
The following images indicate the location of the I/O daughter-board and provide a visual representation of the removal
procedure.
Removing and installing Field Replaceable Units (FRUs)
63
