About this task

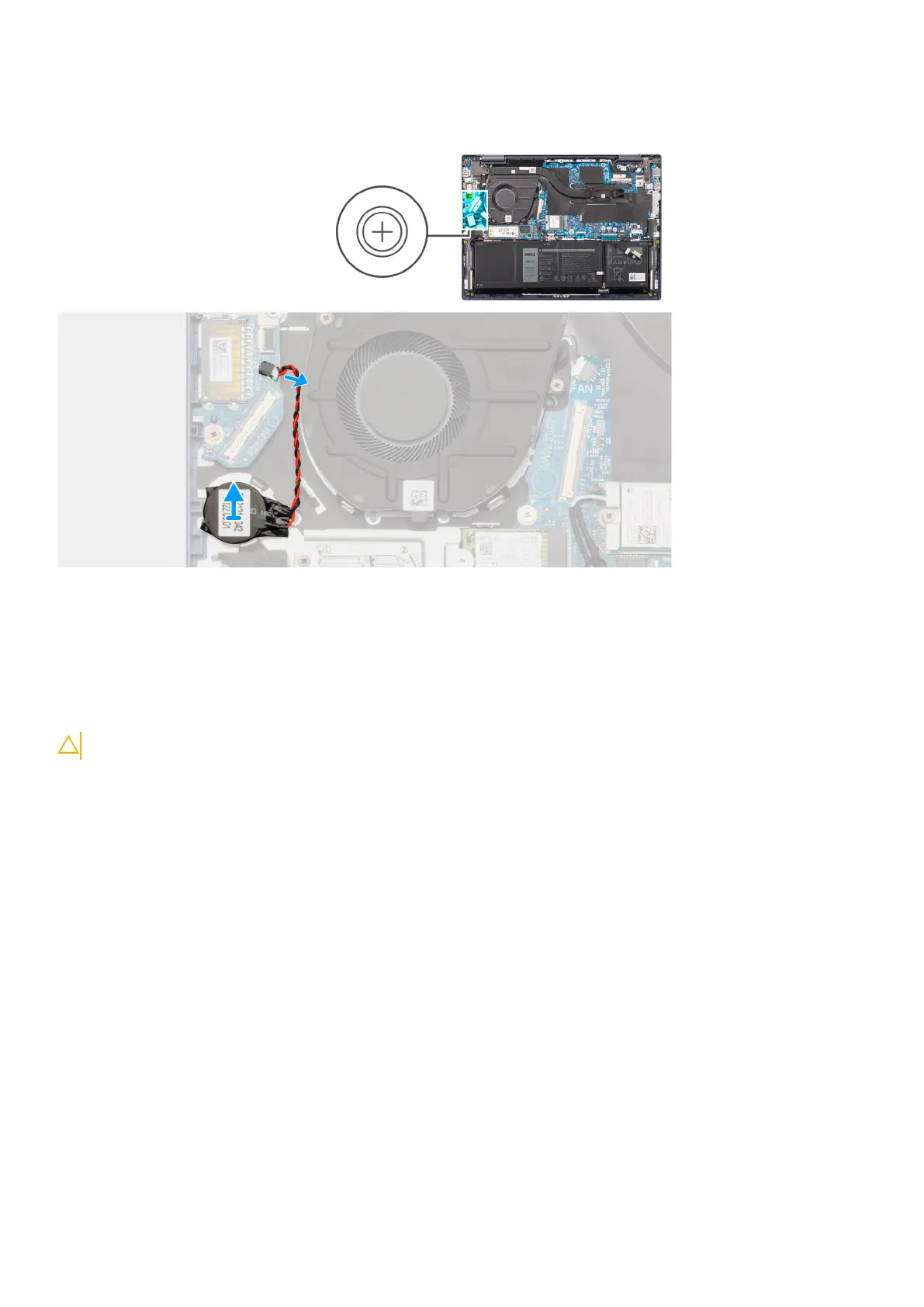

The following image indicates the location of the coin-cell battery and provides a visual representation of the removal procedure.
Steps
1. Disconnect the coin-cell battery from the connector on the I/O daughter-board.
2. Using a plastic scribe, pry the coin-cell battery off the slot on the palm-rest and keyboard assembly.
Installing the coin-cell battery
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
