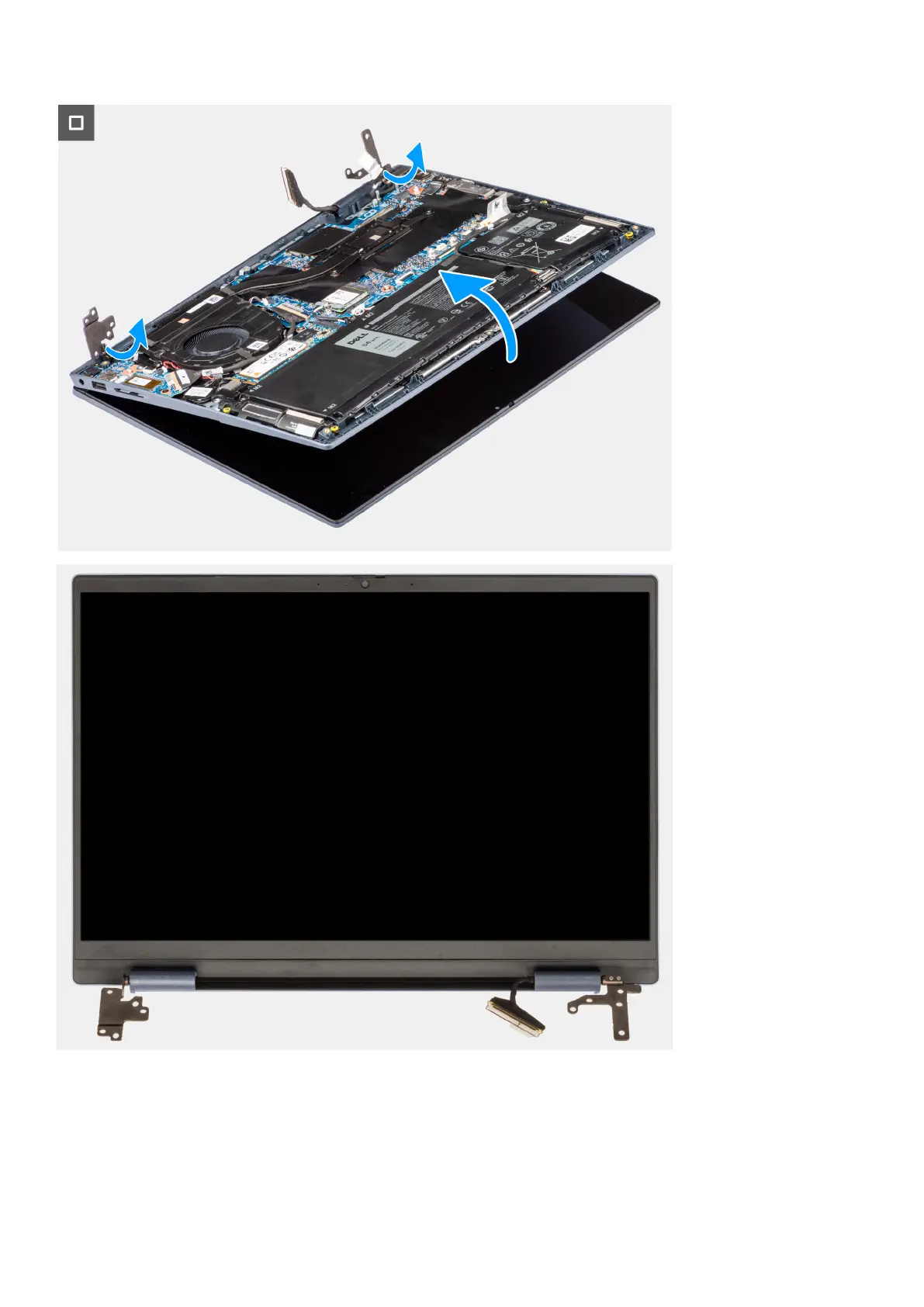

Steps

1. Peel back the tape that secures the display cable to the connector on the system board.

2. Open the latch and disconnect the display cable from the connector on the system board.

3. Remove the two screws (M2.5x3.5) that secure the left display hinge to the I/O daughter-board and palm-rest and

keyboard assembly.

Removing and installing Field Replaceable Units (FRUs)
