Steps

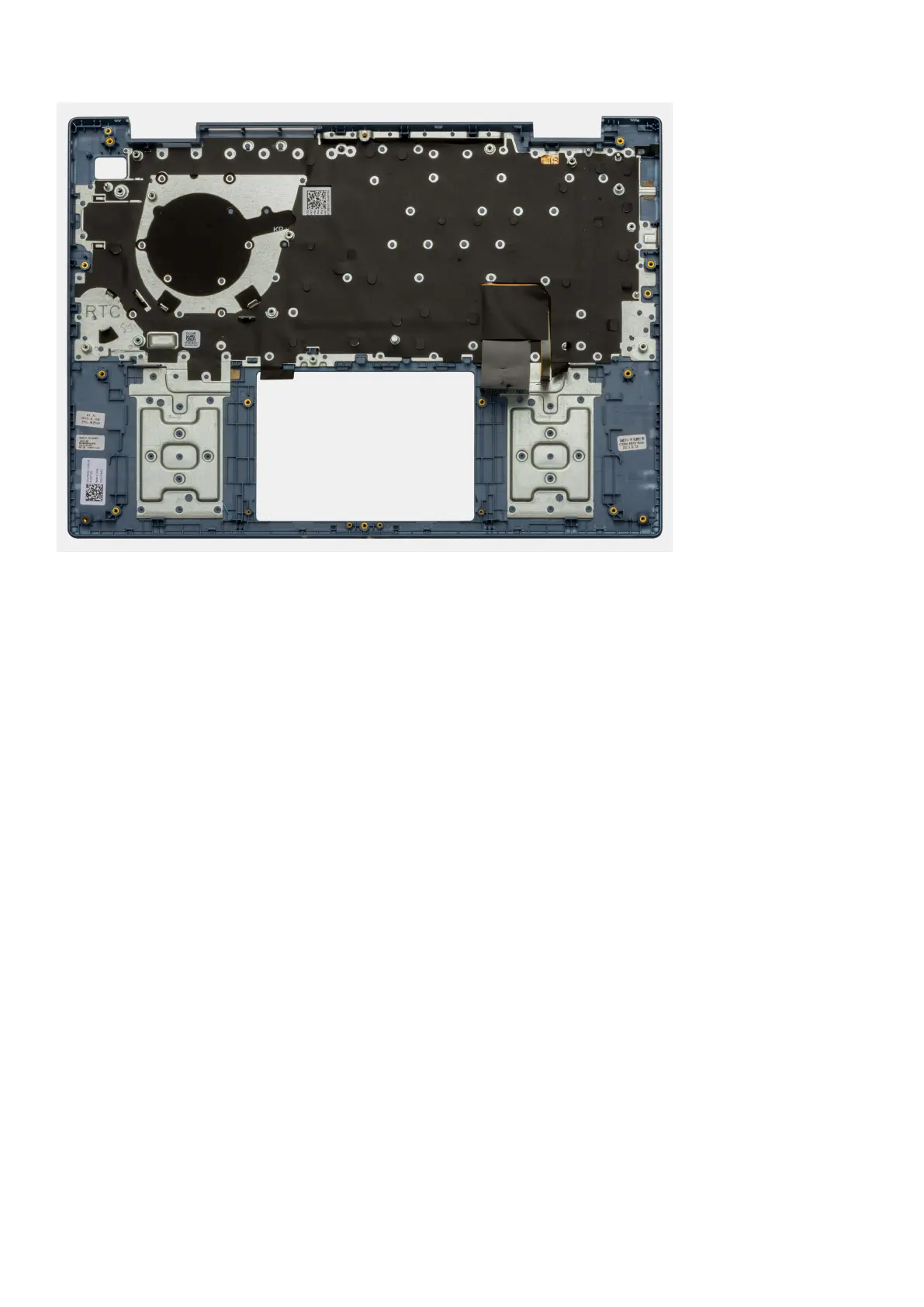

Place the palm-rest and keyboard assembly on a flat and clean surface and perform the post-requisites to install the palm-rest
and keyboard assembly.
Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the power button or the power button with optional fingerprint reader, whichever applicable.
4. Install the coin-cell battery.
5. Install the I/O daughter-board.
6. Install the I/O daughter-board cable.
7. Install the power-adapter port.
8. Install the touchpad.
9. Install the speakers.
10. Install the heat sink.
11. Install the fan.
12. Install the wireless card.
13. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever applicable.
14. Install the 3-cell battery or the 4-cell battery, whichever applicable.
15. Install the base cover.
16. Follow the procedure in After working inside your computer.
84
Removing and installing Field Replaceable Units (FRUs)
