Dell P18F - 13 Removing the USB Board

Removing The USB Board 13
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the optical drive .
5. Remove the palm rest .

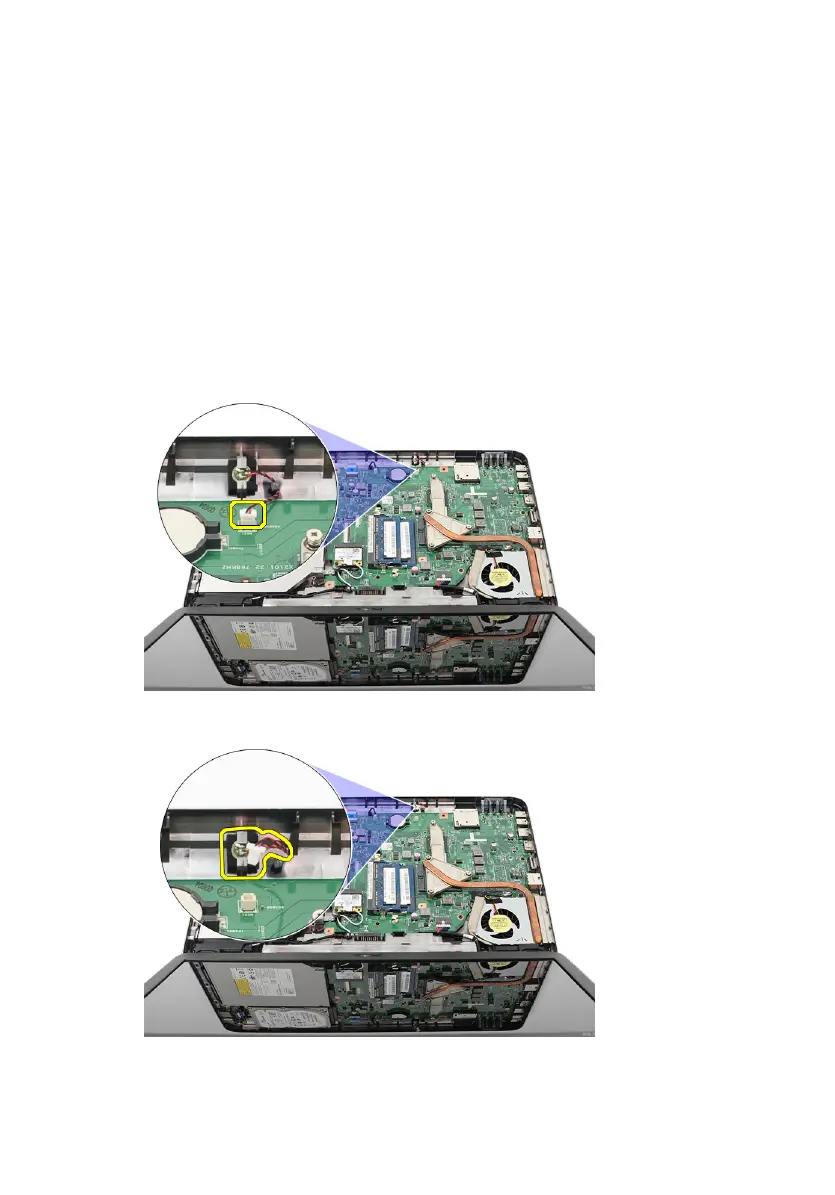

6. Disconnect the USB board cable from the system board.
7. Remove the screw that secures the USB board.
8. Lift up the USB board and remove it from the computer.
35
