Dell P18F - 20 Removing the DC-In Port and the Bracket

Removing The DC-in Port And The
Bracket 20
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .
3. Remove the hinge cover .
4. Remove the keyboard .
5. Remove the palm rest .
6. Remove the display assembly

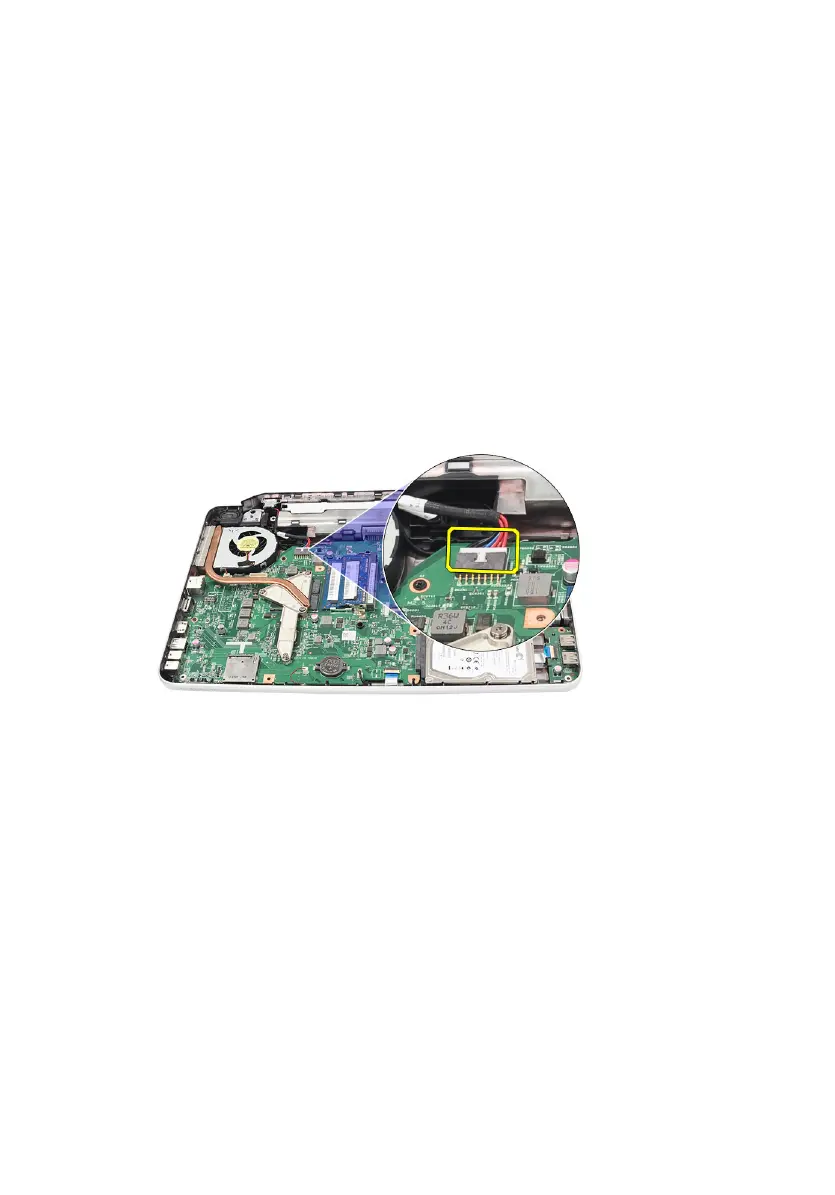

7. Disconnect the DC-in cable from the system board.
8. Remove the screw that secures the DC-in port and bracket.
55
