Altitude
Operating (maximum) 5,000 m (16,400 ft)
Non-operating
(maximum)
12,192 m (40,000 ft)
Thermal dissipation • 164.16 BTU/hour (maximum)
• 41.04 BTU/hour (On Mode)

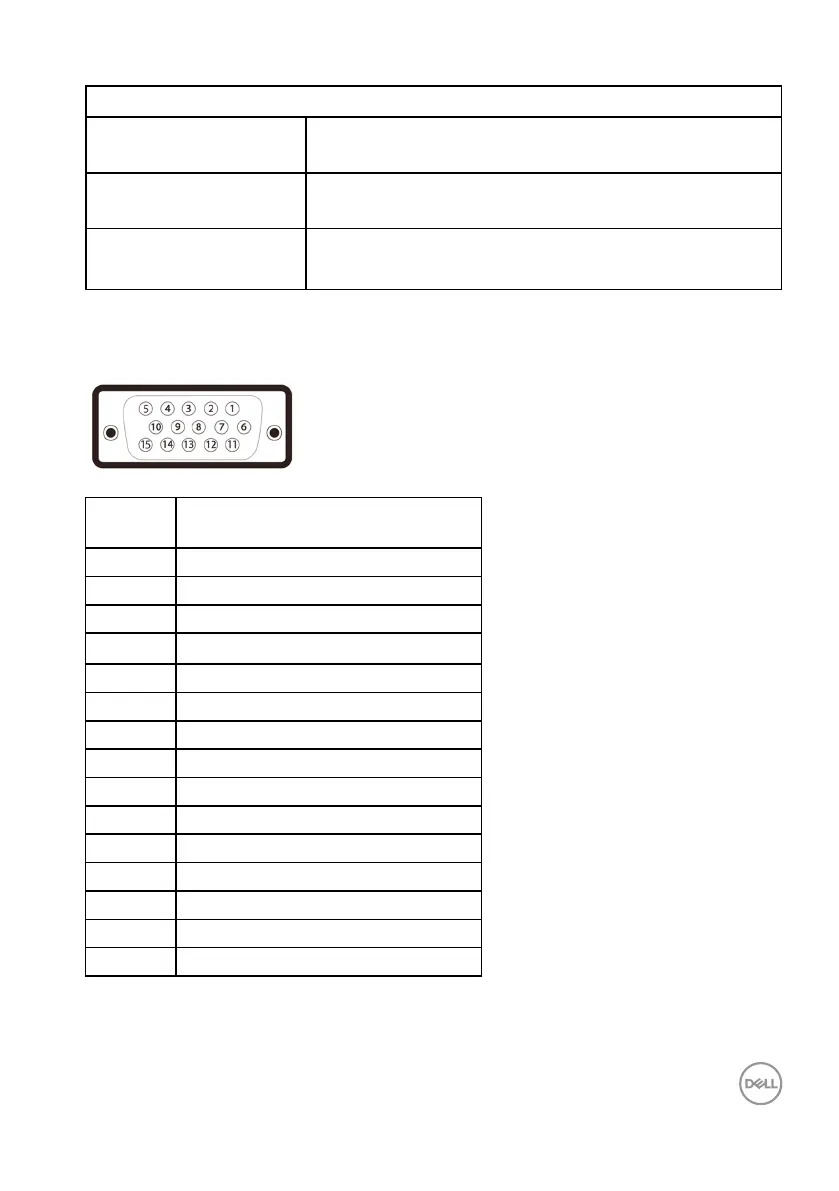

Pin assignments
VGA connector
Pin
number
15-pin side of the connected
signal cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 Computer 5 V/3.3 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
