Dell P26E - Page 18

To Next Page

To Previous Page

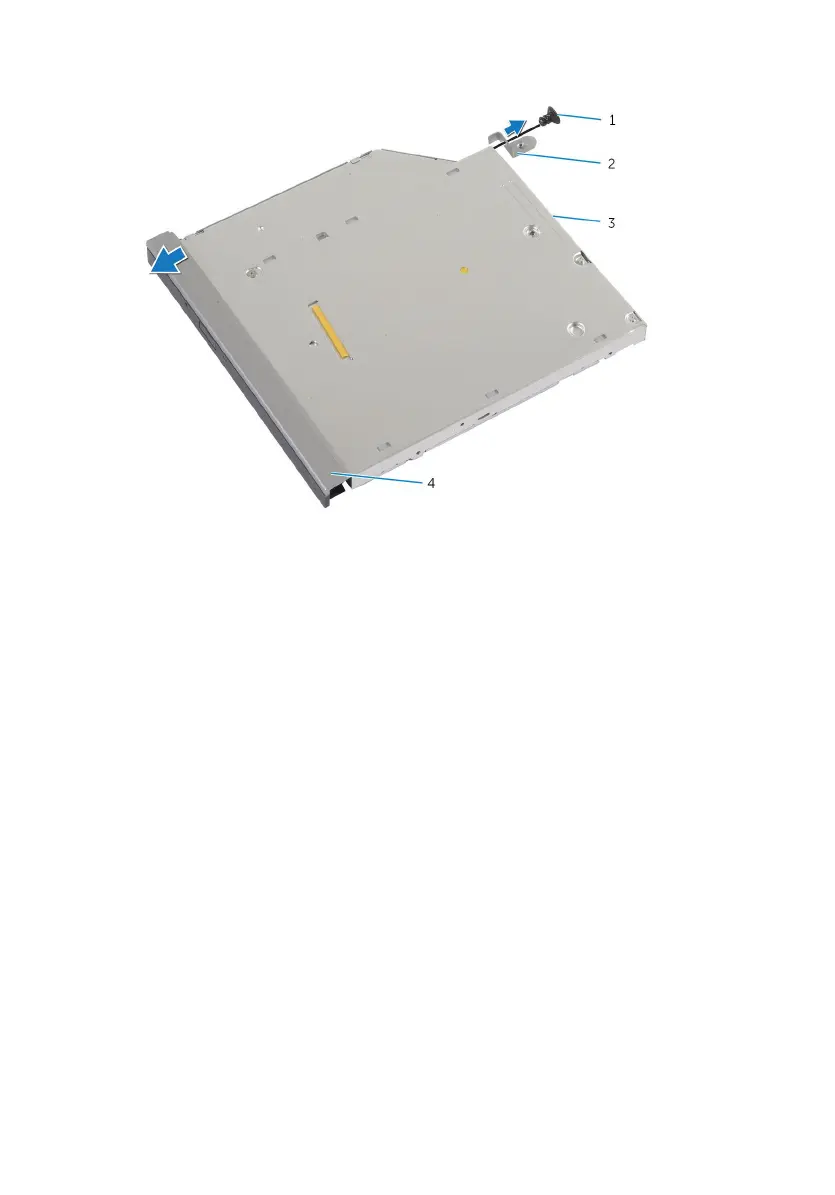

5 Carefully pull the optical-drive bezel and remove it from the optical drive.

1 screw 2 optical-drive bracket

3 optical drive 4 optical-drive bezel
