Procedure

1 Remove the screw that secures the optical-drive connector board to the

computer base.

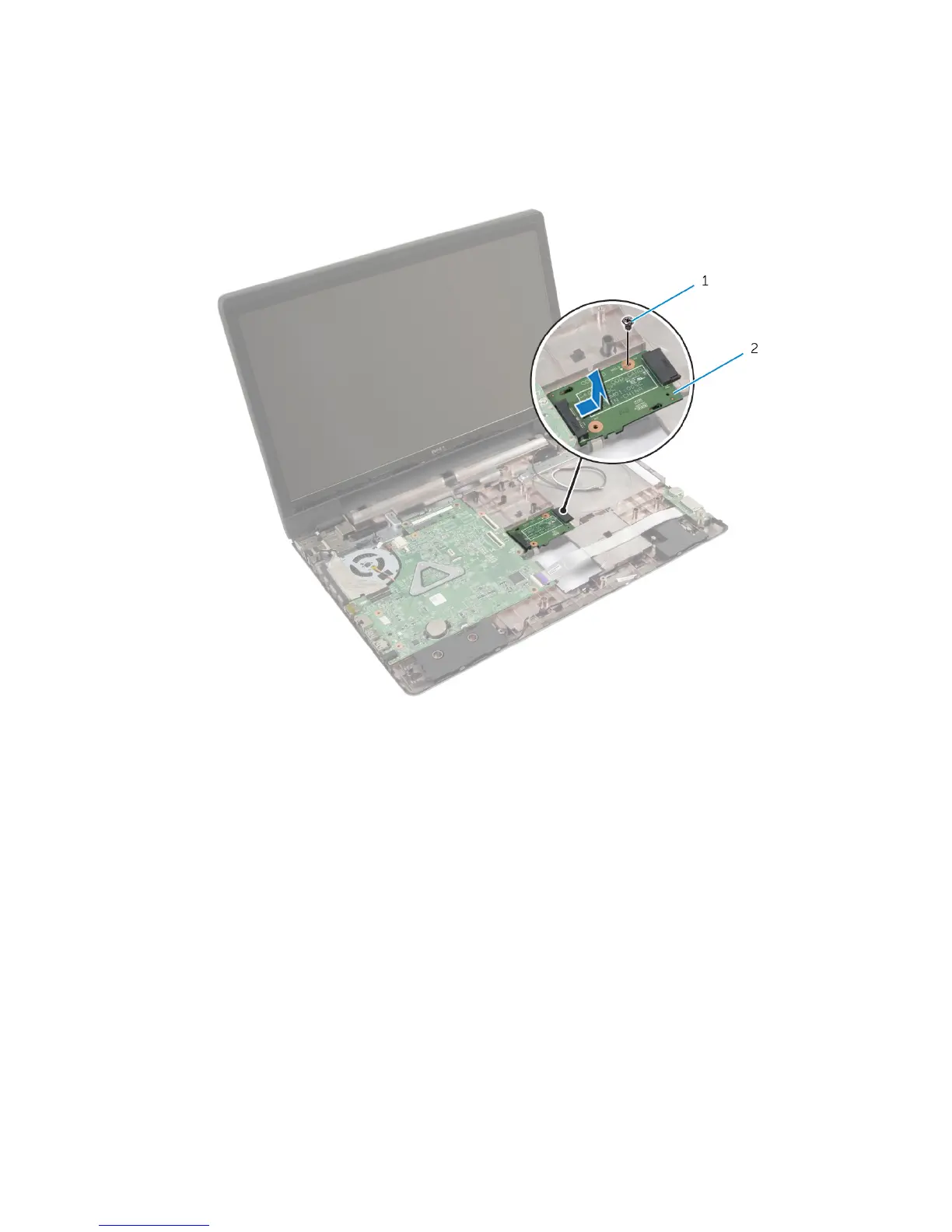

1 screw 2 optical-drive connector

board

2 Slide and lift the optical-drive connector board away from the computer

base.
