Procedure

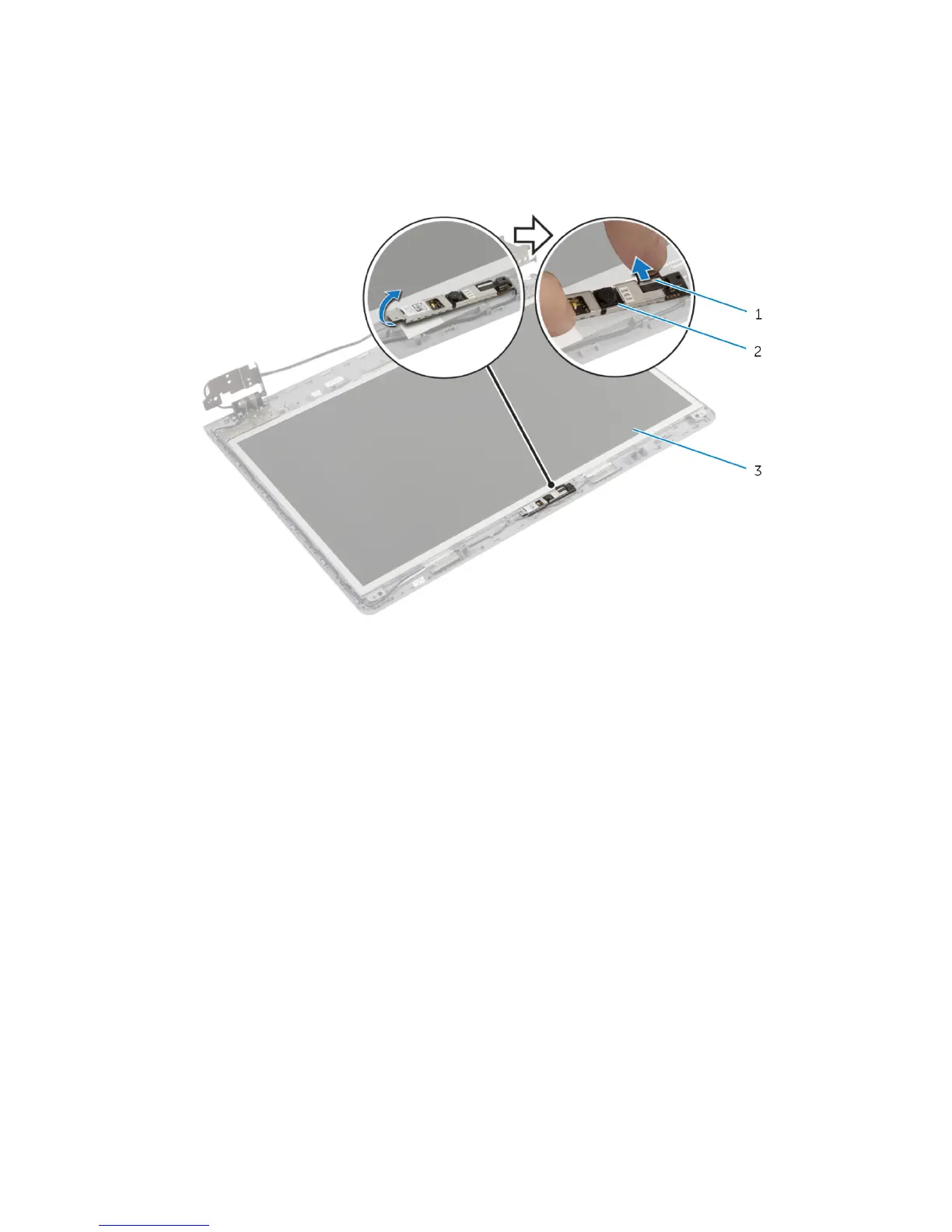

1 Carefully lift and peel off the camera from the display back-cover.

2 Disconnect the camera cable from the camera.

1 camera cable 2 camera

3 display back-cover
