Procedure

1 Remove the screws that secure the palm rest to the system board.

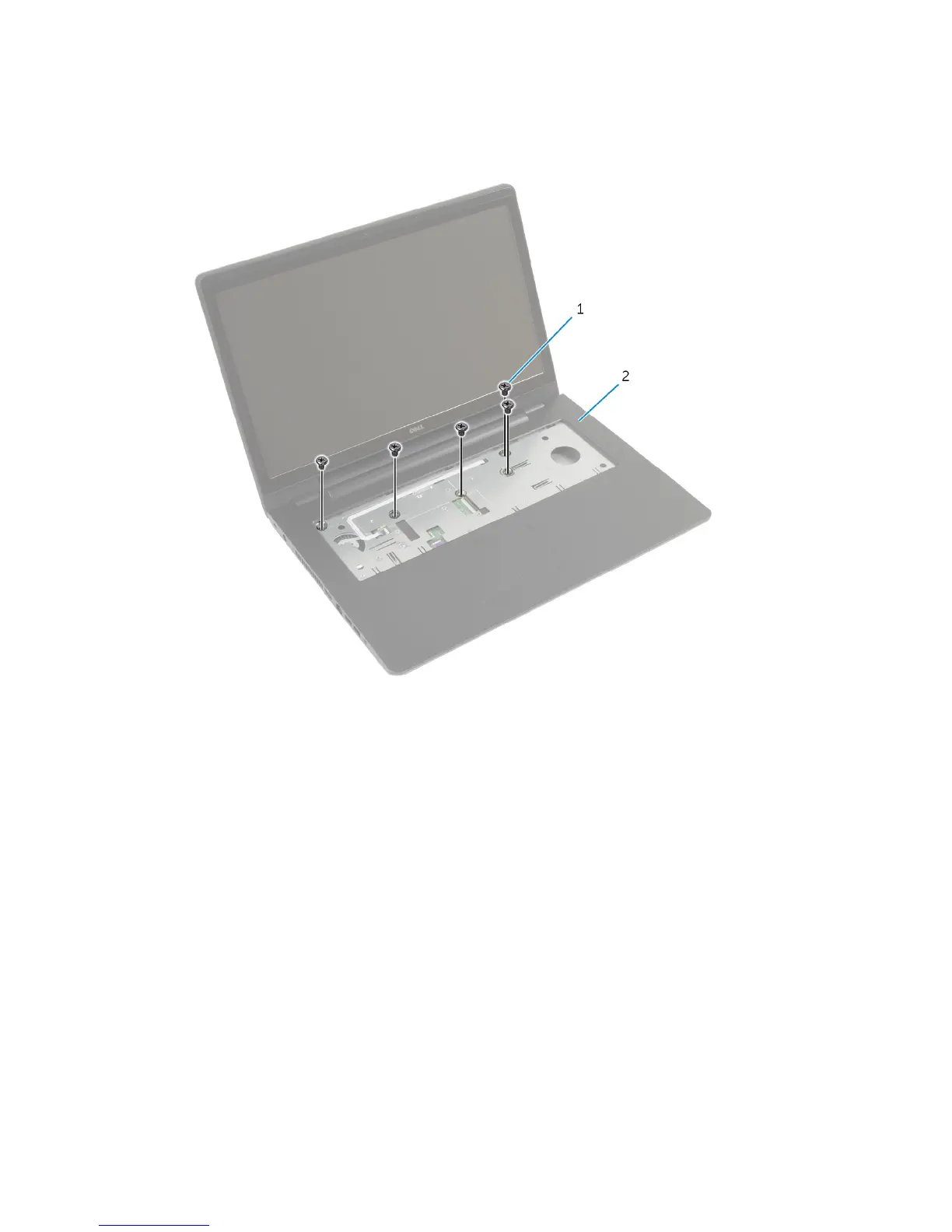

1 screws (5) 2 palm rest

2 Close the display and turn the computer over.
