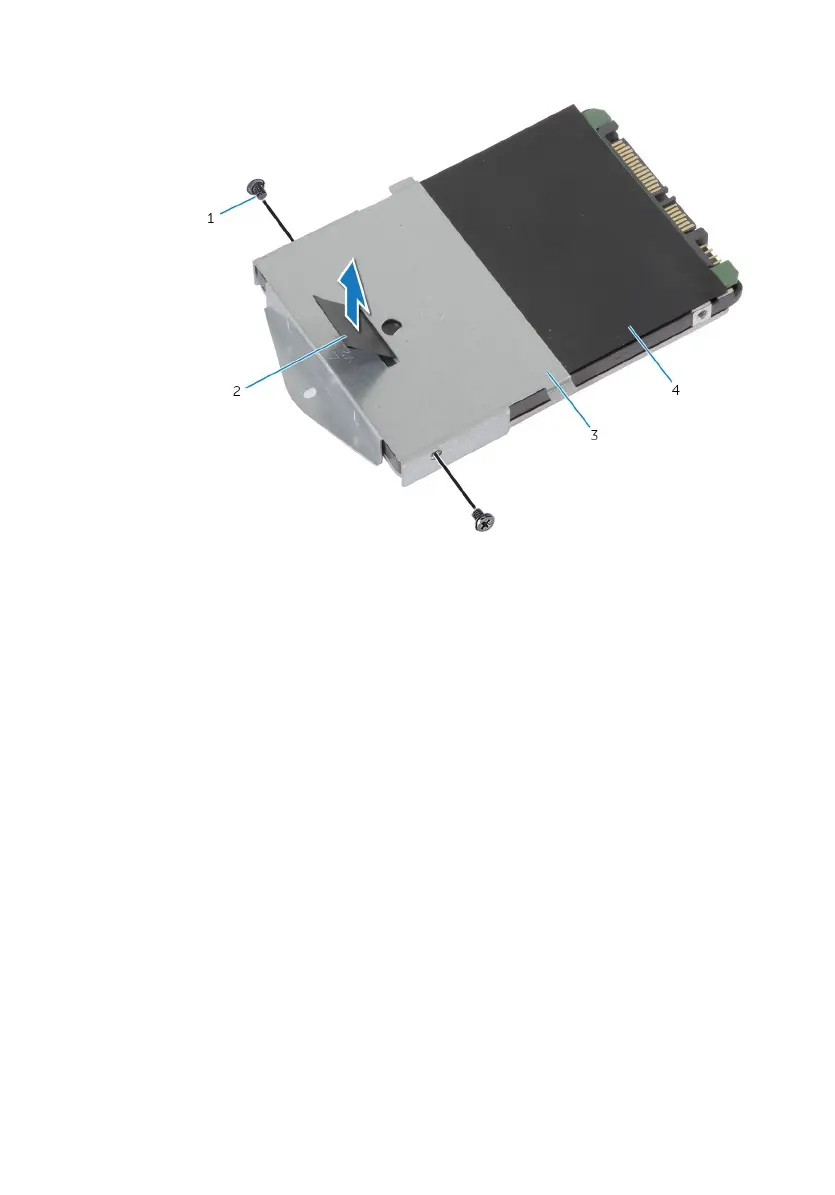

5 Using the pull-tab, lift the hard-drive bracket off the hard drive.

1 screws (2) 2 pull-tab

3 hard-drive bracket 4 hard drive
