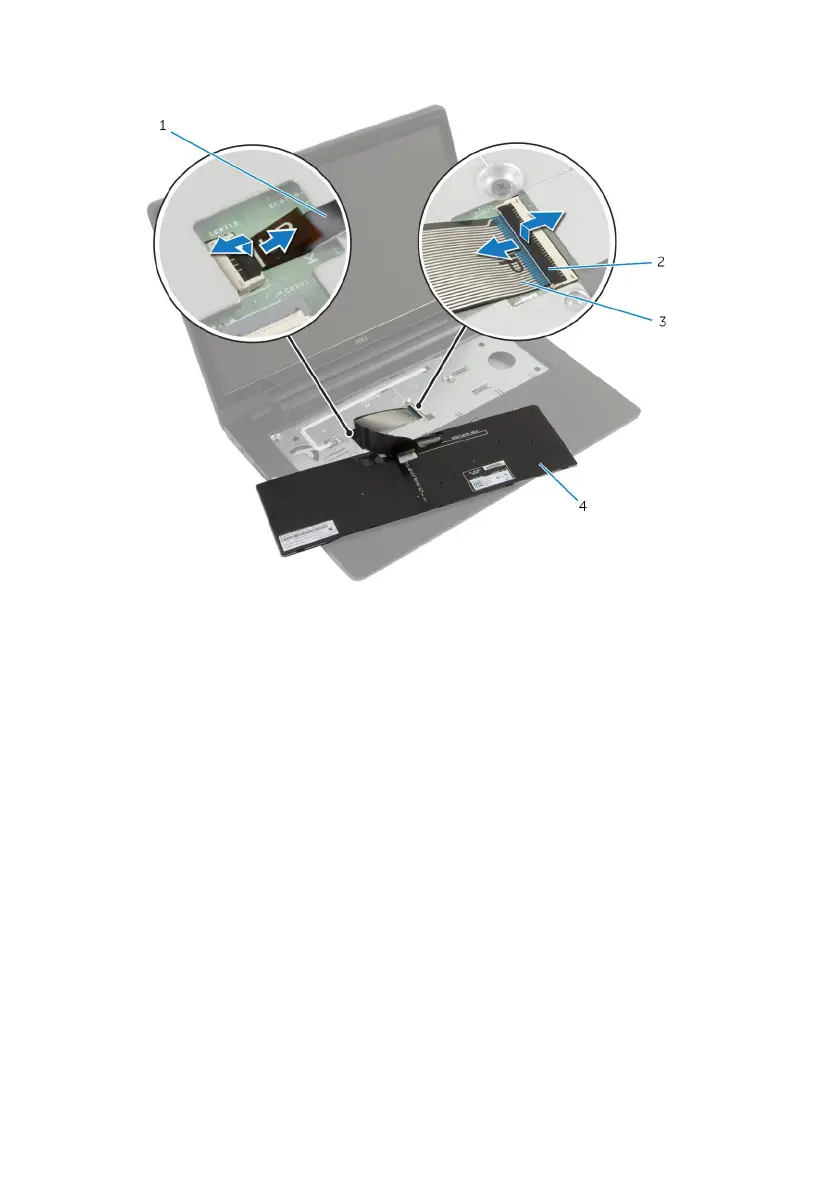

5 Lift the keyboard along with the cables, off the palm-rest assembly.

1 keyboard-backlight cable 2 latches (2)

3 keyboard cable 4 keyboard
