6 Lift the power-button board at an angle and remove it from the palm

rest.

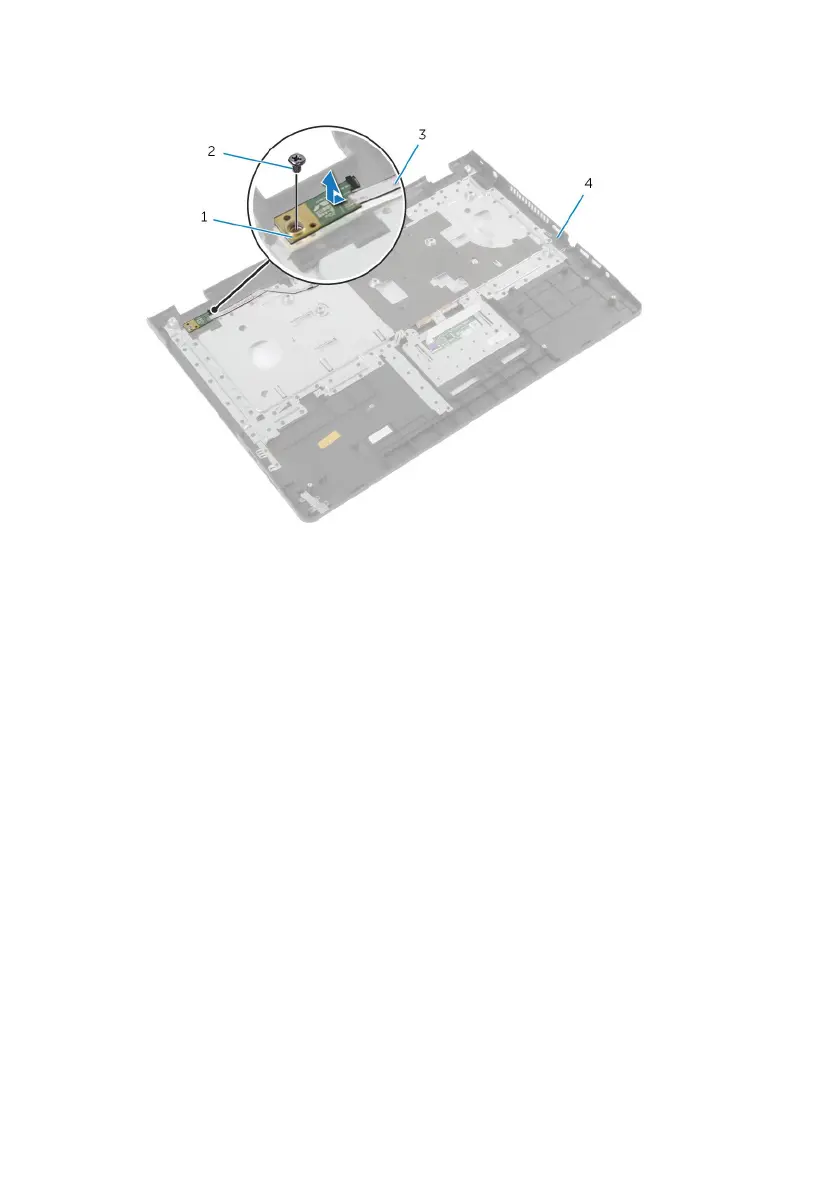

1 power-button board 2 screw

3 power-button board cable 4 palm rest
