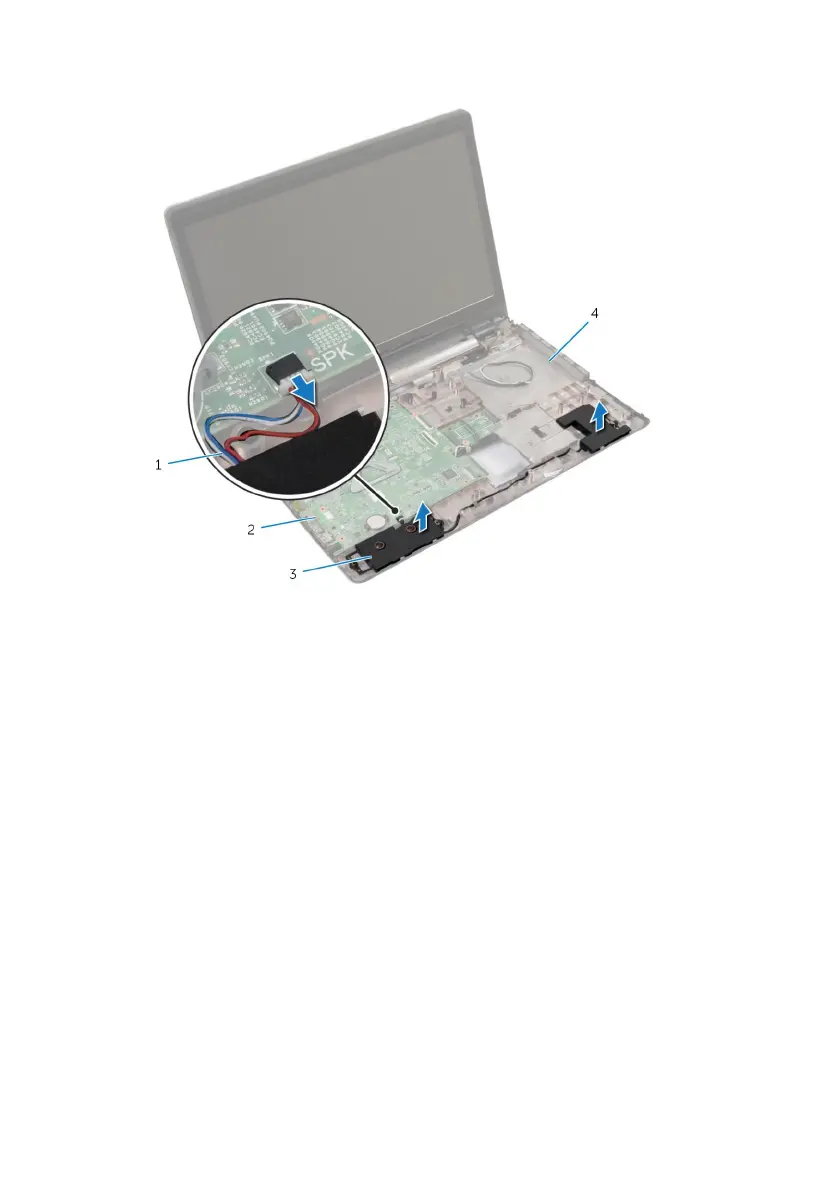

3 Lift the speakers, along with the speaker cable, off the computer base.

1 speaker cable 2 system board

3 speakers (2) 4 computer base
