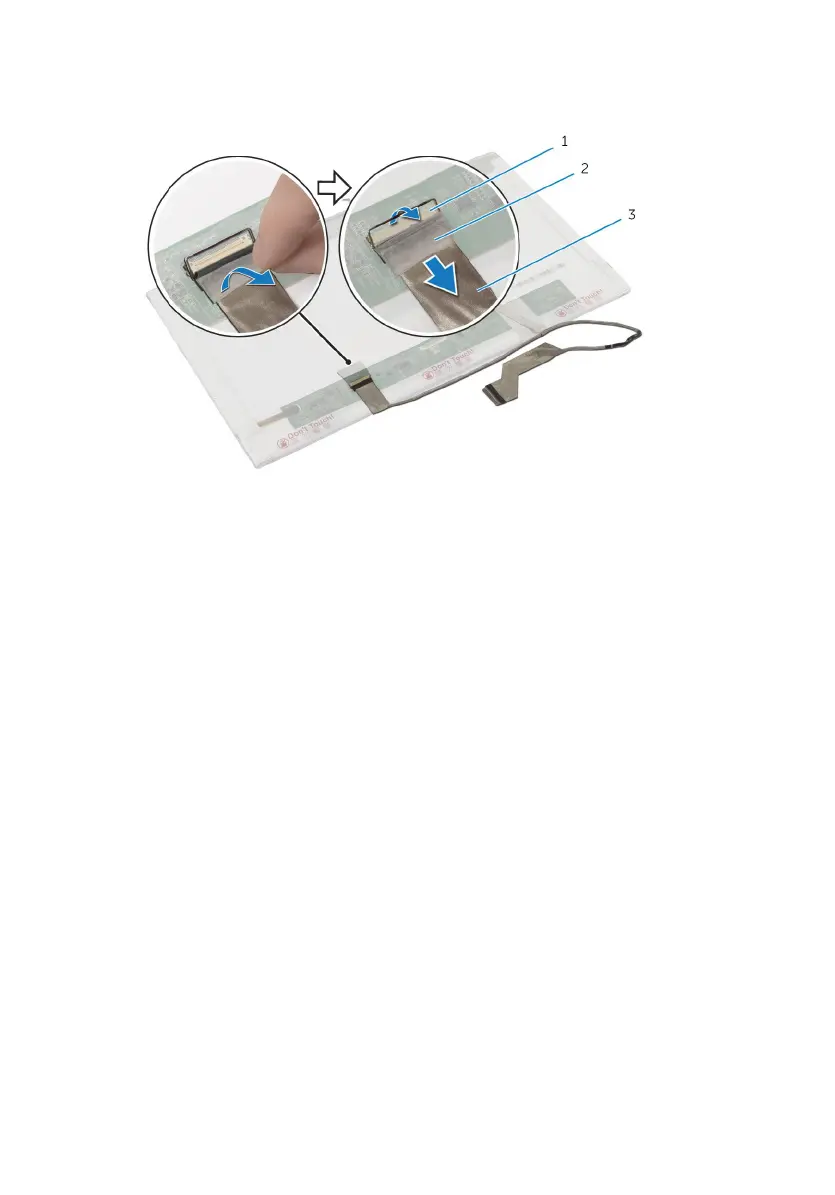

5 Lift the connector latch and disconnect the display cable from the display

panel.

1 connector latch 2 tape

3 display cable
