Touchpad
Removing the touchpad
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

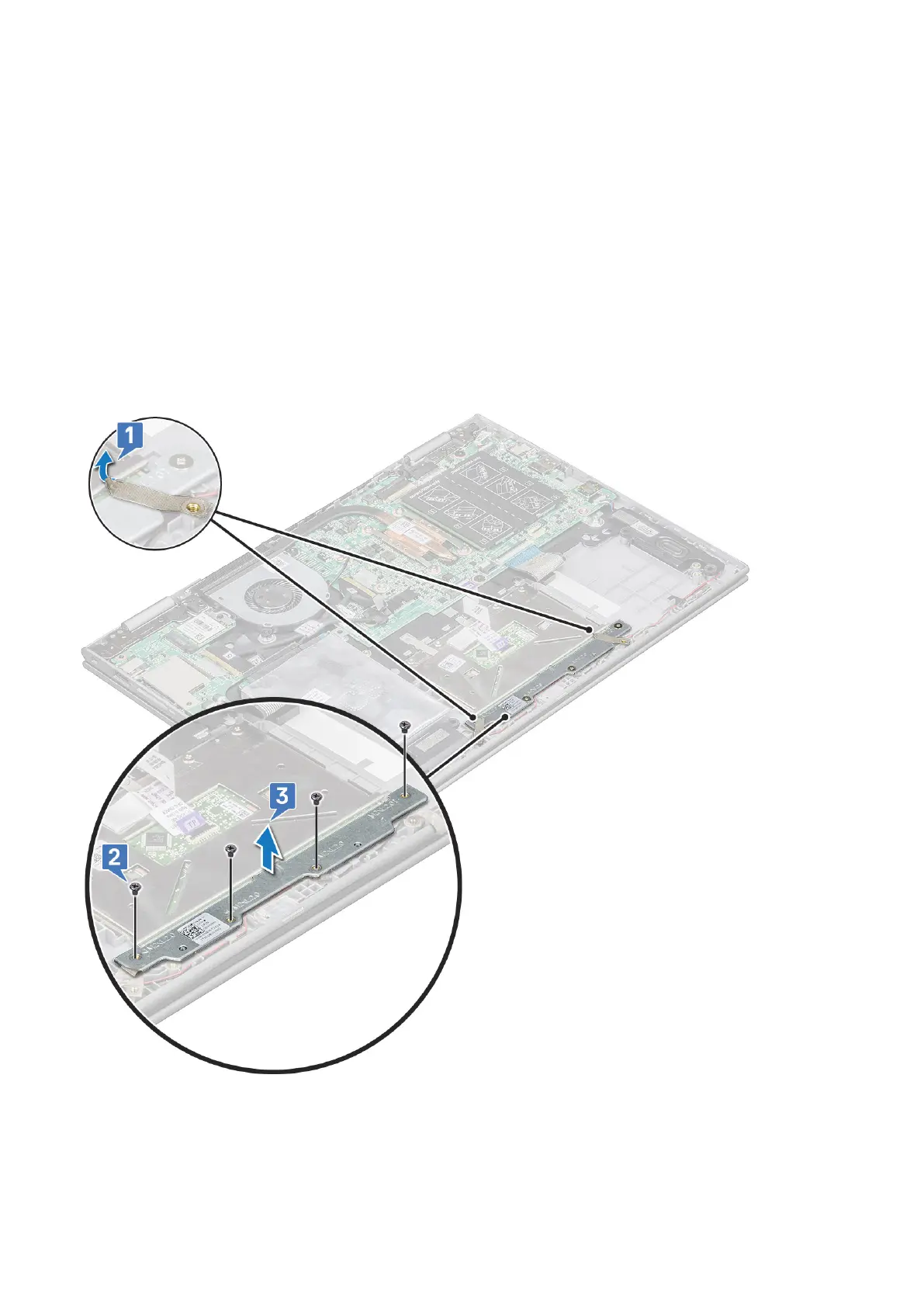

3. To remove the touchpad metal bracket:
a. Remove the mylar tapes that secures the speaker cable to the laptop [1].
b. Remove the M2x2 screws (4) that secure the touchpad board to the laptop chassis [2].
c. Lift the touchpad metal bracket from the laptop chassis [3].
4. To release the touchpad:
a. Remove the mylar tapes that secure the touchpad bracket to the laptop [1]
b. Lift the latch and release touchpad cable on the system board [2].
c. Pull the touchpad cable to release it from adhesive that secure the cable to the laptop.
