14 Gently release the ports on the system board from the slots on the computer

base and lift the system board o the computer base.

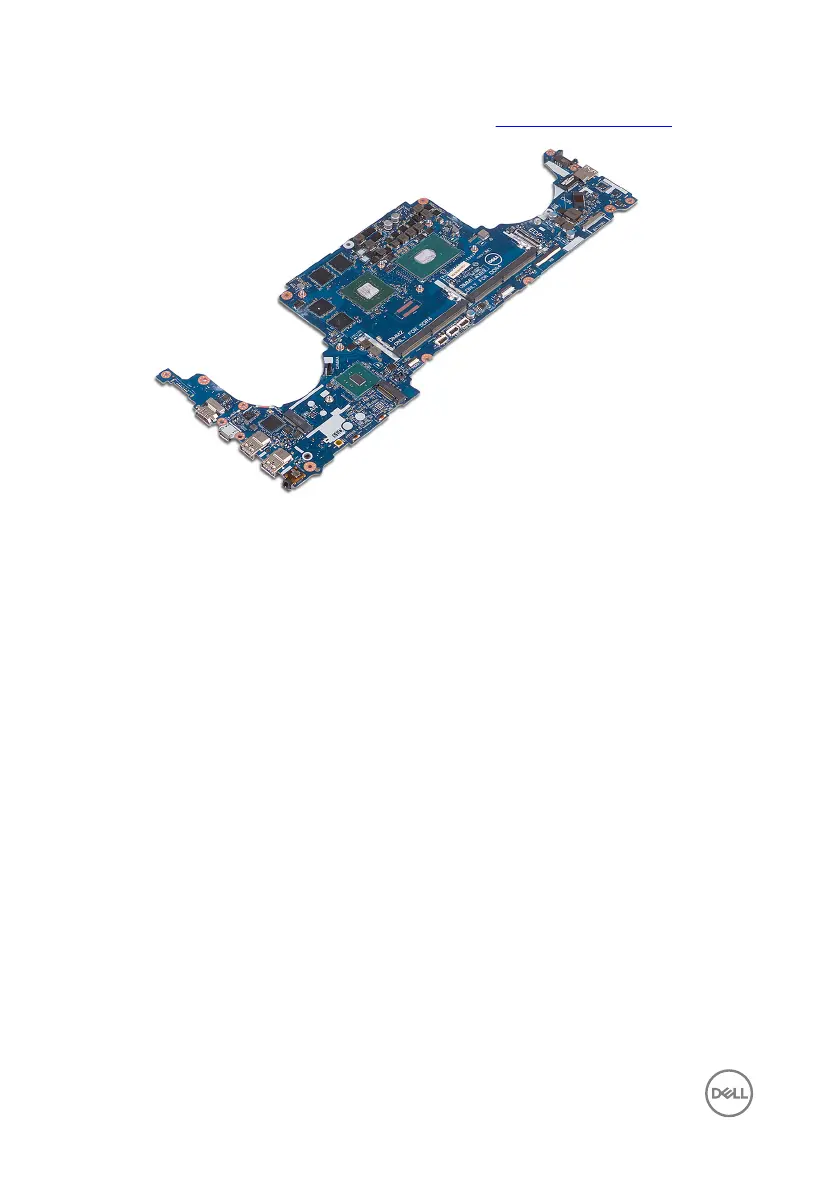

15 Turn the system board over.
