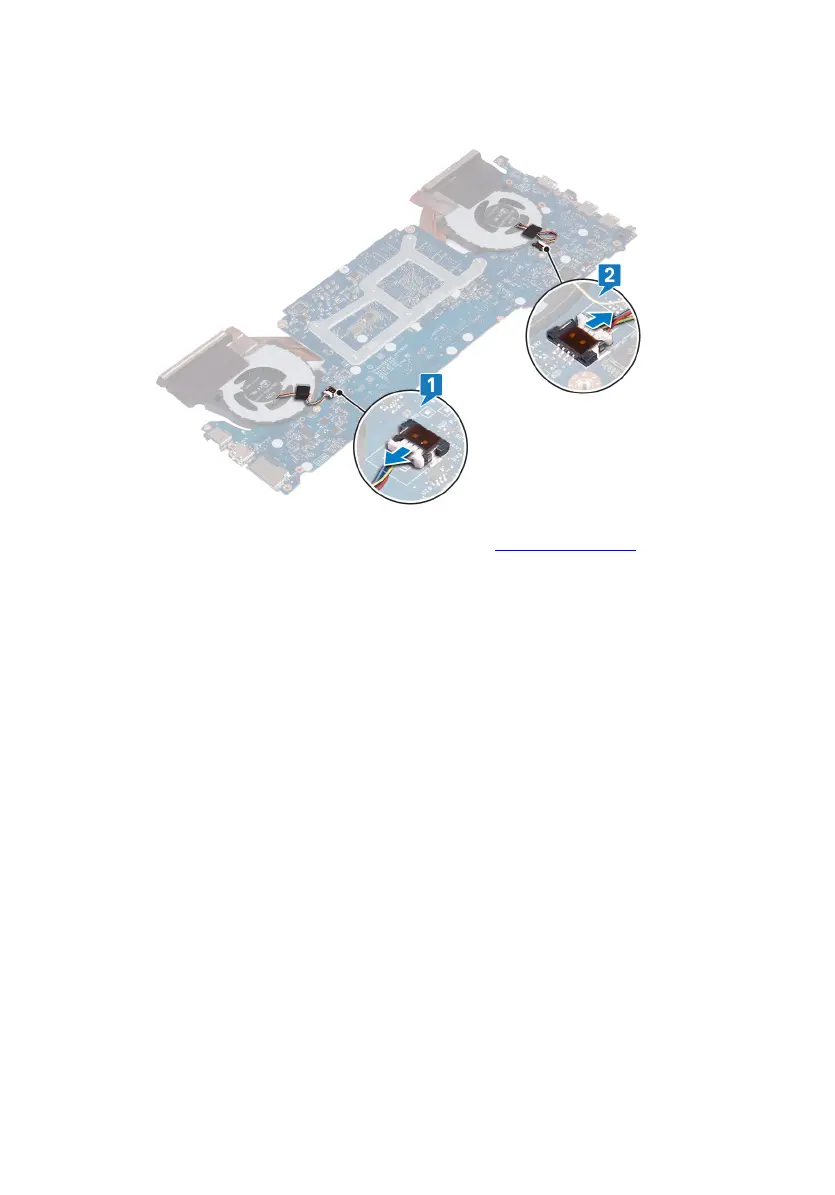

2 Disconnect the right-fan cable from the system board.
3 Follow the procedure from step 4 to step 6 in “Removing the fans”.
4 Turn the system board over.
5 In sequential order (indicated on the heat-sink assembly), remove the six screws
(M2x3) that secure the heat sink assembly to the system board.
70
