Steps
1. Lift the mylar and use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot
until the memory module pops up.
2. Slide and remove the memory module off the memory module slot on the system board.
Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

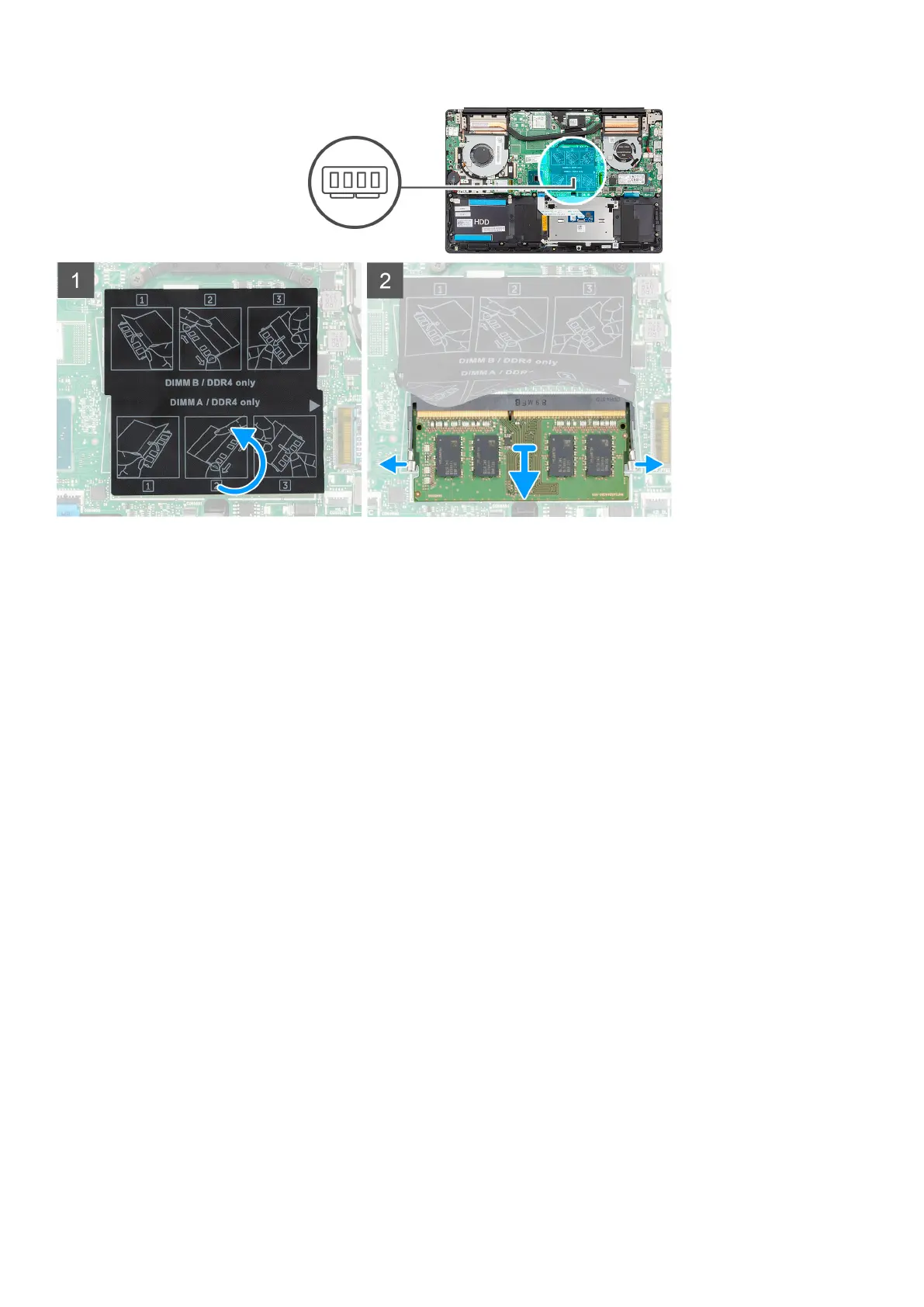

The figure indicates the location of the memory module and provides a visual representation of the installation procedure.
Removing and installing components
19
