Steps

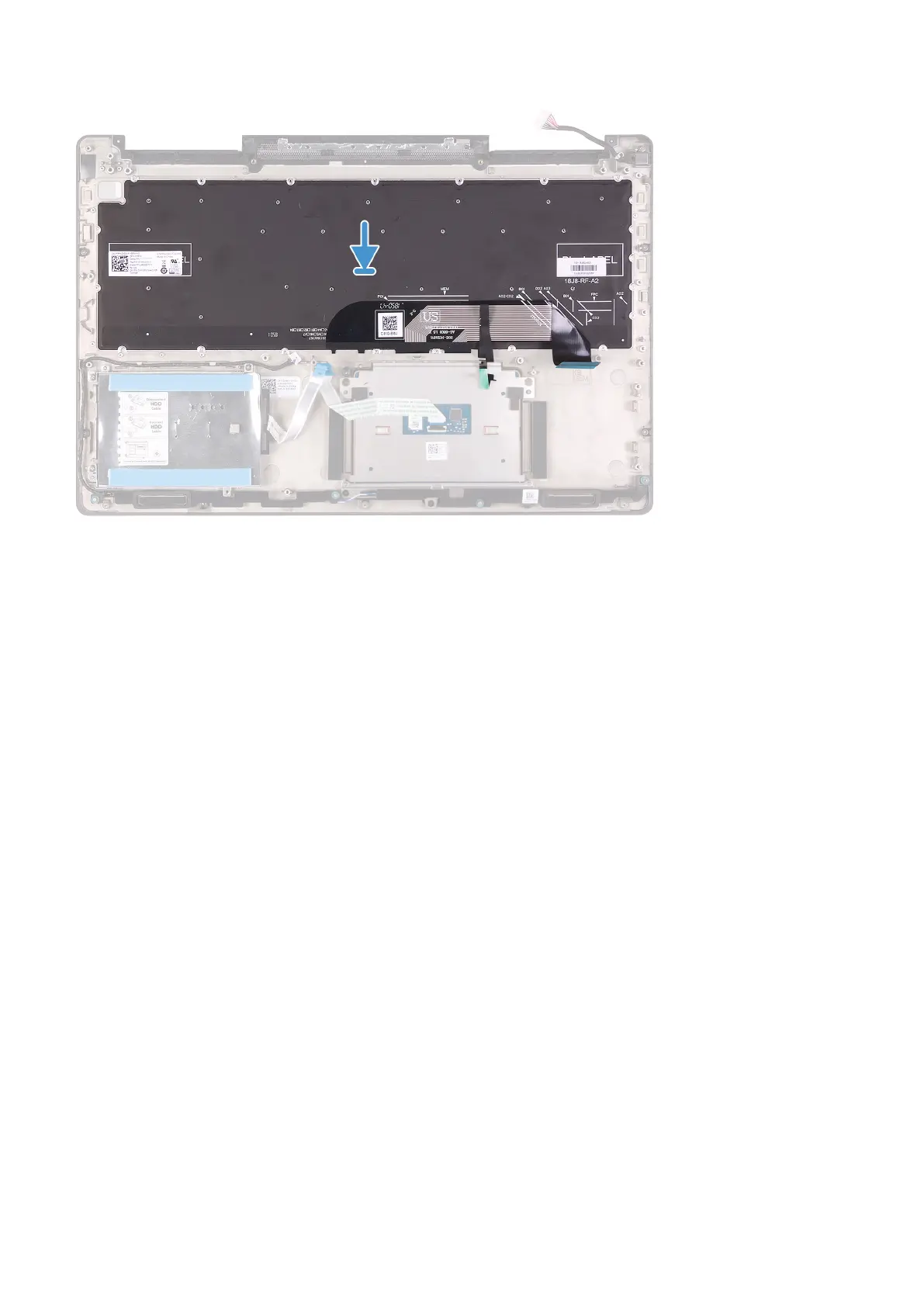

Align the keyboard on the palm-rest assembly.
Next steps
1. Install the keyboard bracket.
2. Install the system board.
3. Install the power-adapter port.
4. Install the power button with fingerprint reader.
5. Install the I/O board.
6. Install the display assembly.
7. Install the CPU fan.
8. Install the GPU fan.
9. Install the WLAN card.
10. Install the battery.
11. Install the base cover.
12. Follow the procedure in After working inside your computer.
Palm rest
Removing the palm rest
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the GPU fan.
6. Remove the CPU fan.
7. Remove the speakers.
Removing and installing components
63
