Dell P83F - Removing the M.2 2280 Pcie Solid-State Drive; Installing the M.2 2280 Pcie Solid-State Drive

2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2280 PCIe solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable.
About this task
The figure indicates the location of the M.2 2280 PCIe solid-state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the screw (M2x4) that secures the solid-state drive to the system board.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2280 PCIe solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

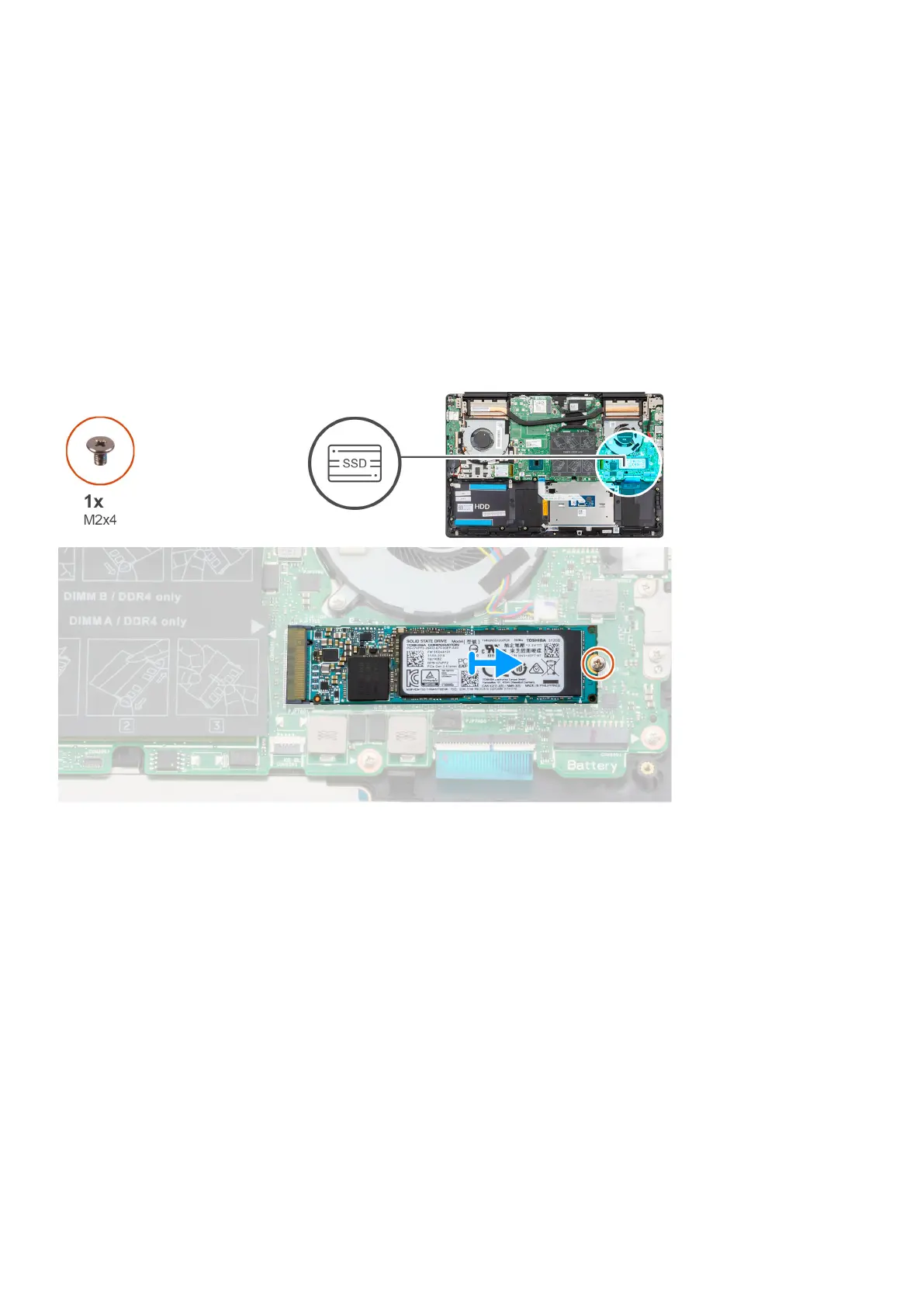

The figure indicates the location of the M.2 2280 PCIe solid-state drive and provides a visual representation of the installation
procedure:
Removing and installing components
27
