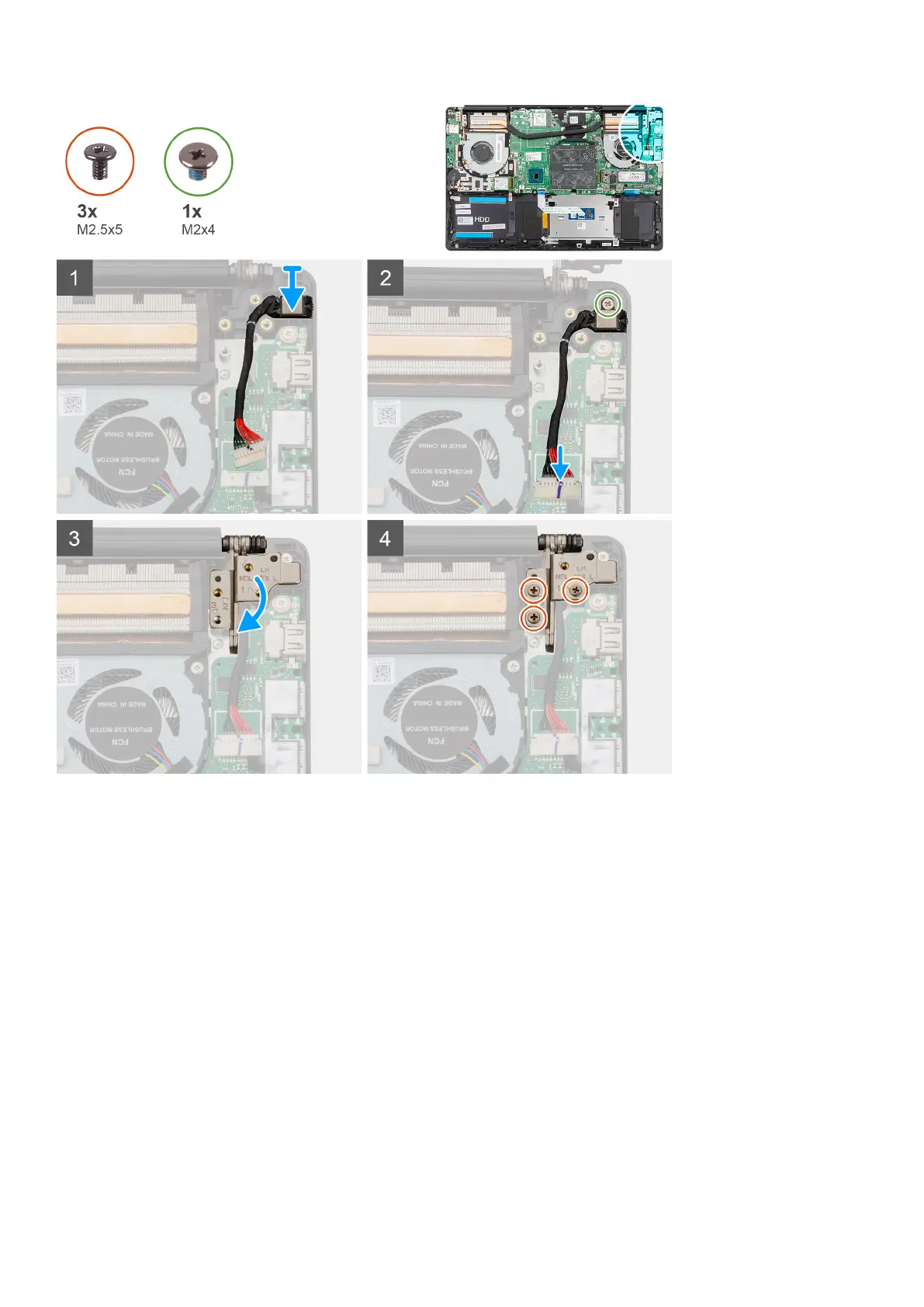

Steps
1. Connect the power-adapter port cable to the system board.
2. Replace the screw (M2x4) that secures the power-adapter port to the palm-rest and keyboard assembly.
3. Using the alignment posts, close the display hinges.
4. Replace the three screws (M2.5x5) that secure the left display hinge to the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
46
Removing and installing components
