Replacing the power-adapter port
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

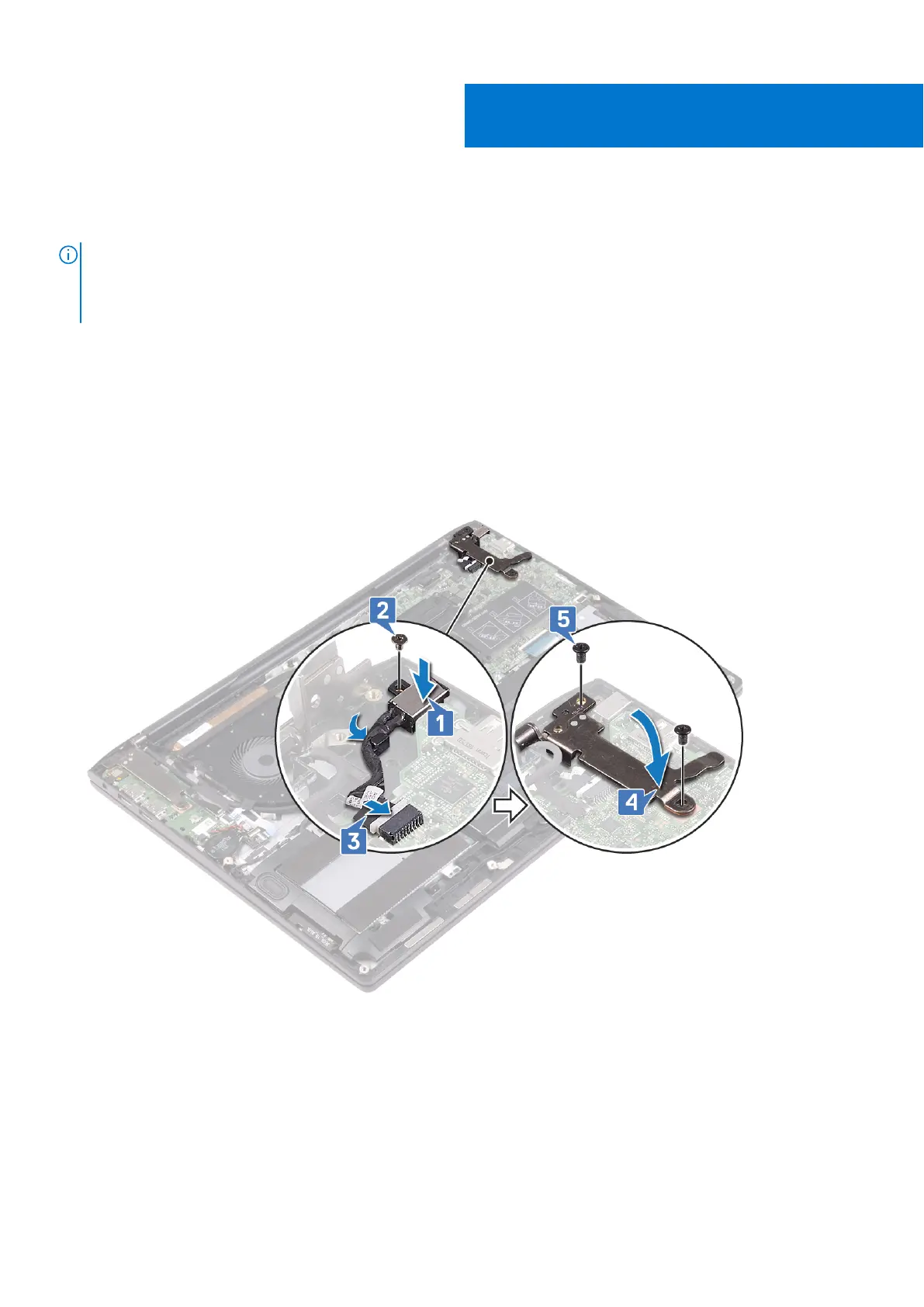

1. Place the power-adapter port into the slot on the palm-rest assembly.
2. Replace the screw (M2x3) that secures the power-adapter port to the palm-rest assembly.
3. Connect the power-adapter port cable to the system board.
4. Close the left display hinge.
5. Replace the two screws (M2.5x4) that secure the left display hinge to the system board.
Post-requisites
Replace the base cover.
