Replacing the speakers
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

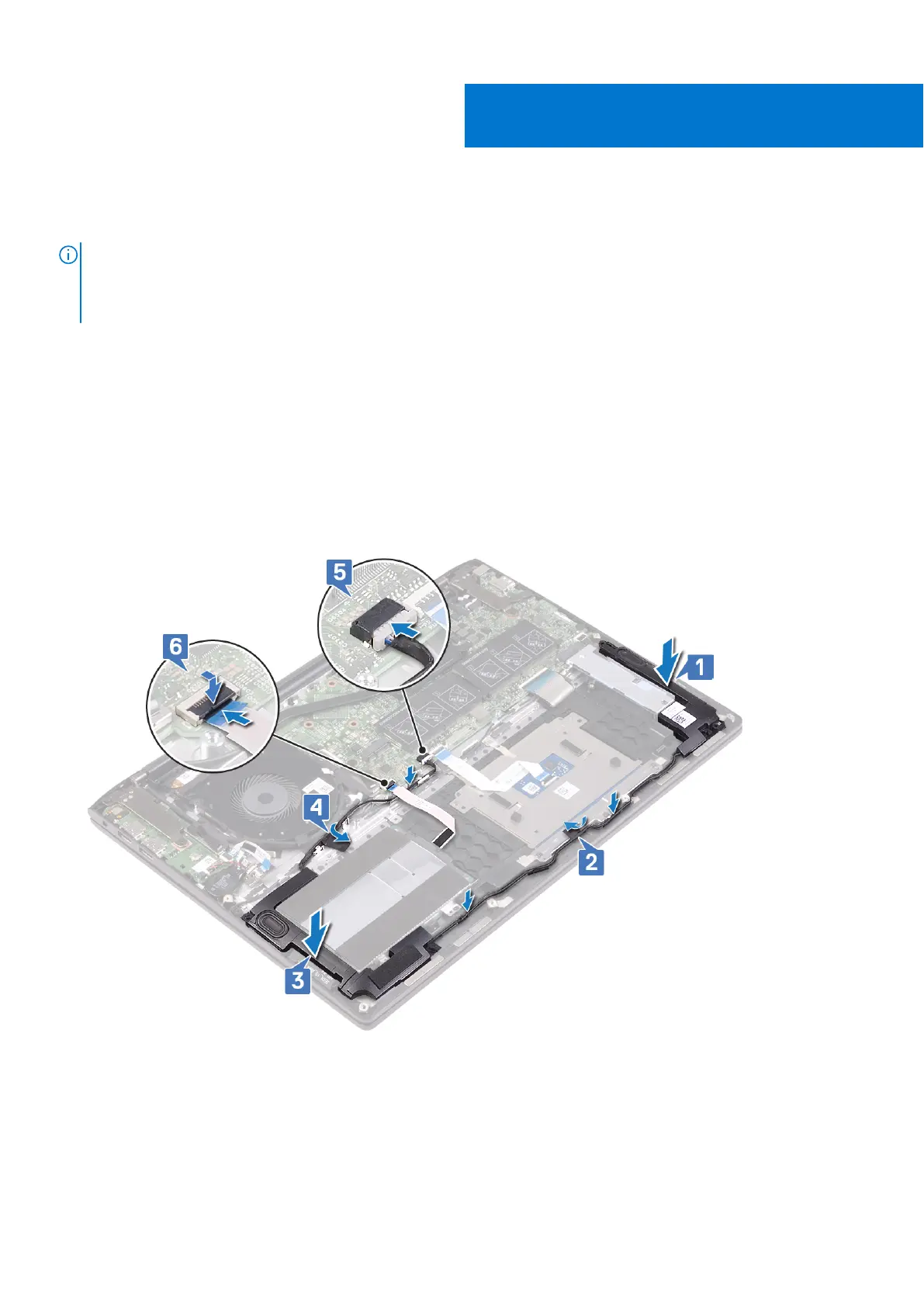

1. Using the alignment posts on the palm-rest assembly, place the left speaker on the palm-rest assembly.
2. Route the speaker cable through the routing guides on the palm-rest assembly and adhere the tape secures the speaker
cable to the palm-rest assembly.
3. Using the alignment posts on the palm-rest assembly, place the right speaker on the palm-rest assembly.
4. Adhere the tapes that secure the speaker cable to the touchpad bracket.
5. Connect the speaker cable to the system board.
6. Connect the hard-drive cable to the system board.
Post-requisites
1. Replace the battery.
2. Replace the base cover.
