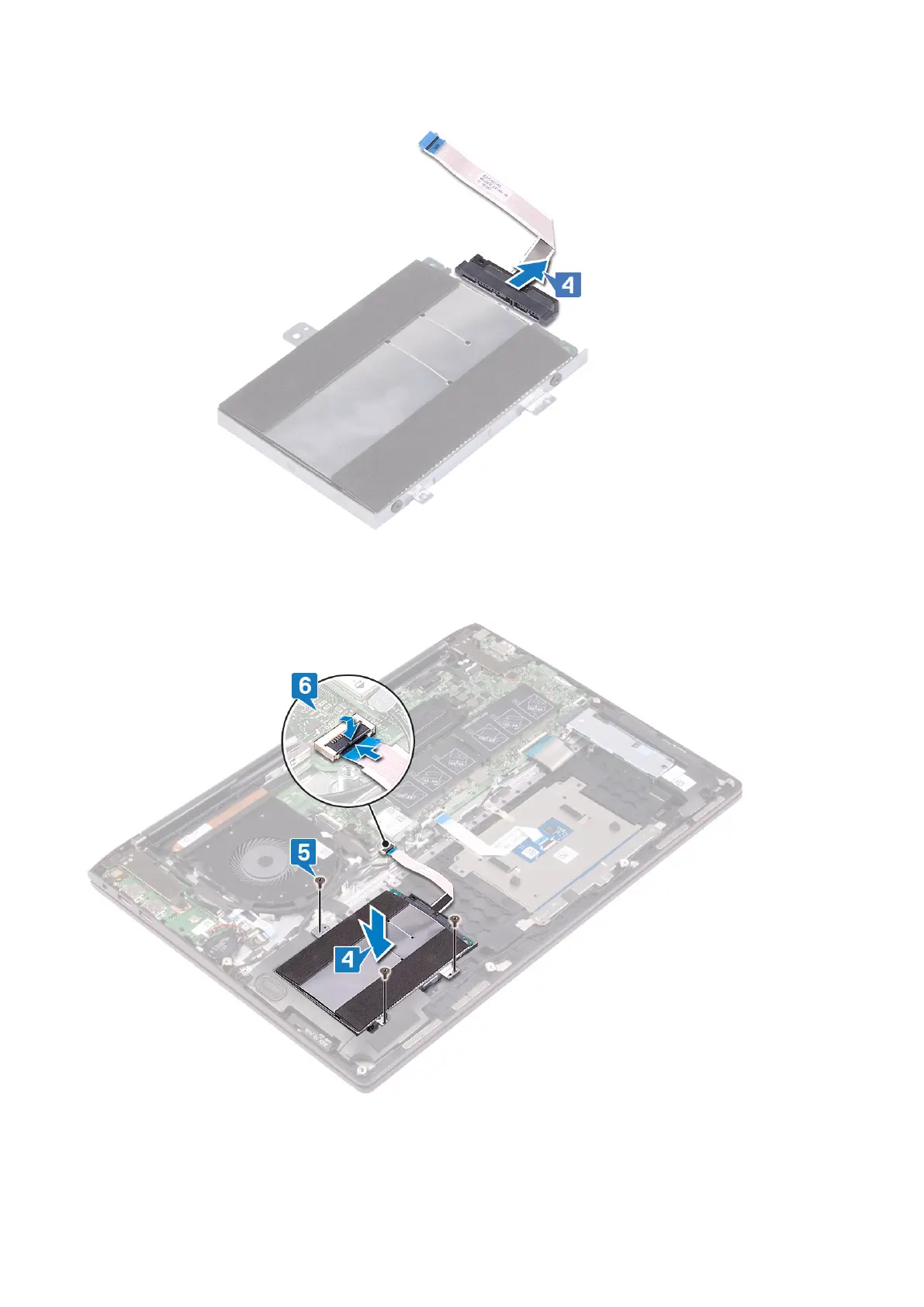

4. Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.

5. Replace the three screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

6. Connect the hard-drive cable to the system board.

Replacing the hard drive
