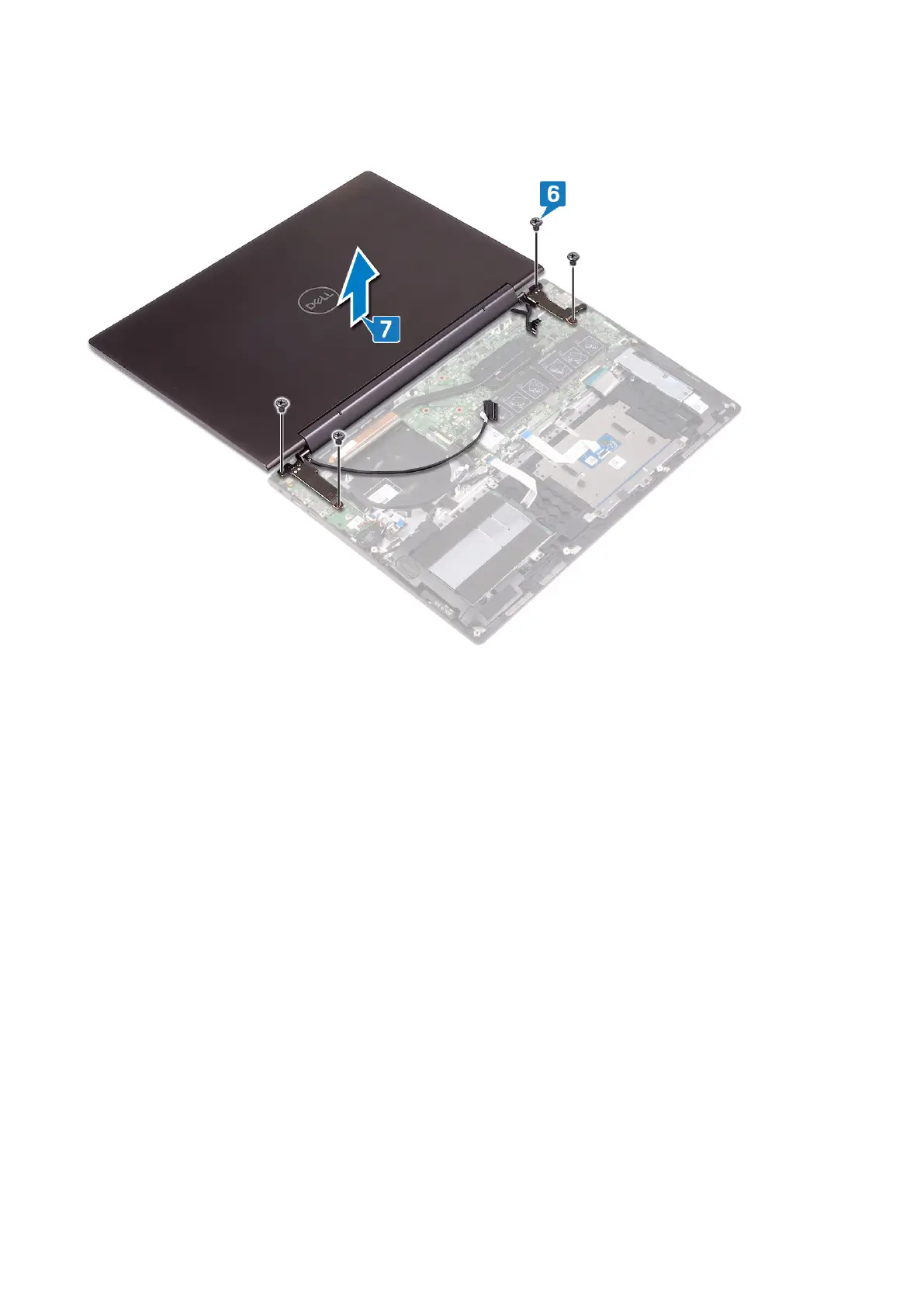

6. Turn the computer over and remove the four screws (M2.5x4) that secure the display hinges to the I/O board and system

board.

7. Lift the display assembly off the palm-rest assembly.

64 Removing the display assembly
