13. Remove the two screws (M2x2) that secure the system board to the palm-rest assembly.

14. Lift the system board off the palm-rest assembly.

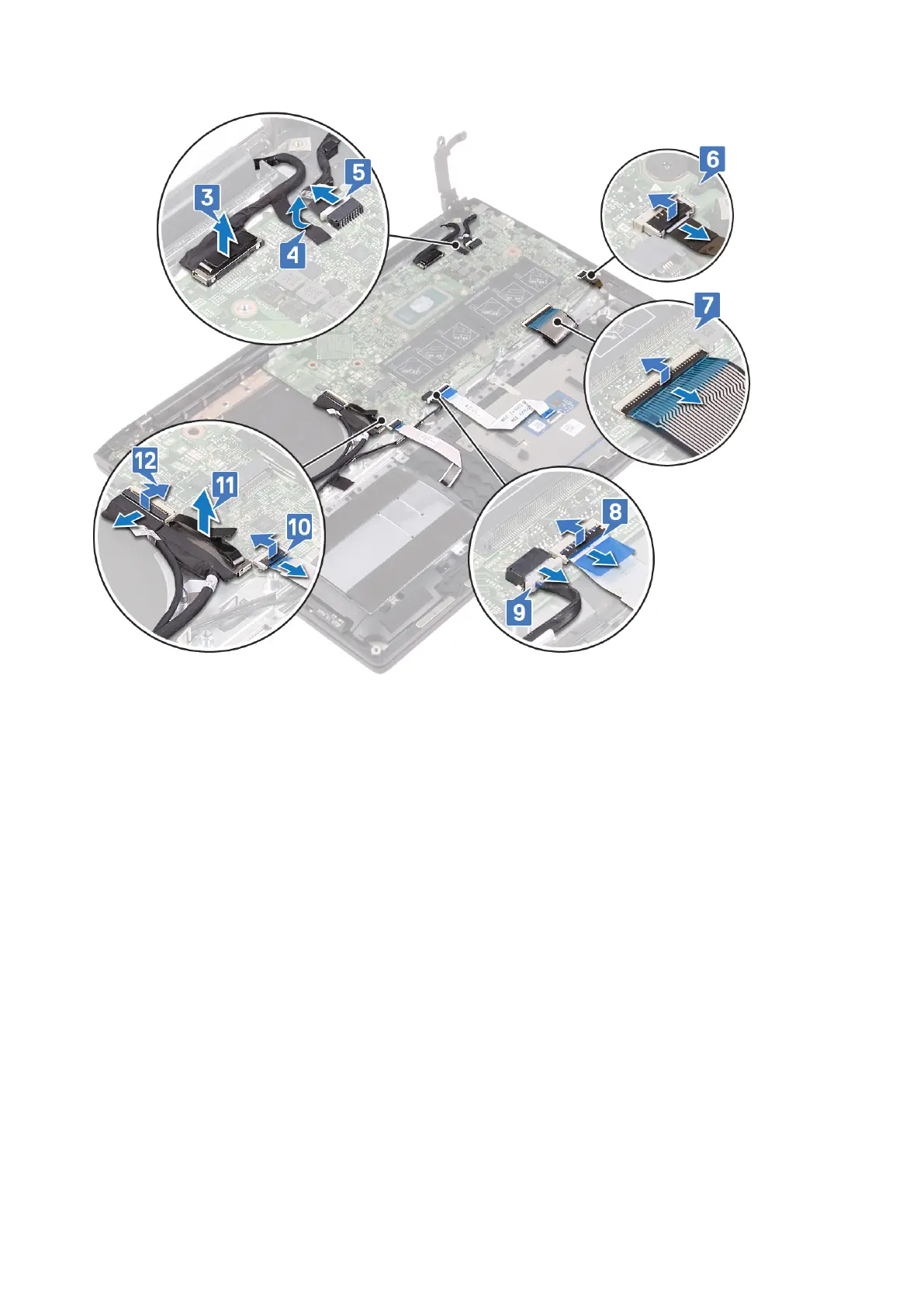

Removing the system board
