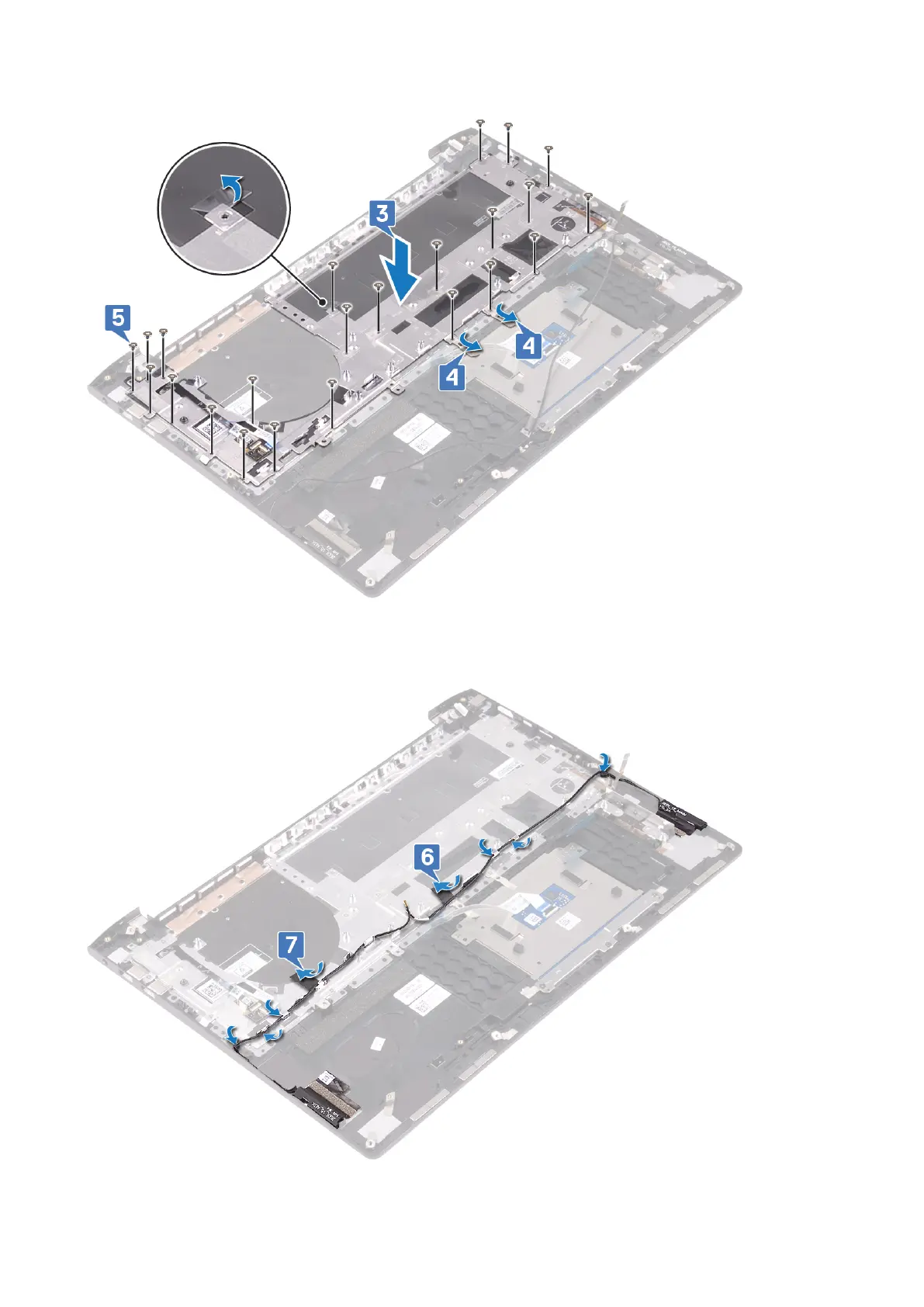

6. Replace the plastic sheet on the keyboard bracket.

7. Route the antenna cables through the routing guides on the keyboard bracket.

8. Adhere the tapes that secure the antenna cables to the keyboard bracket.

Replacing the keyboard
