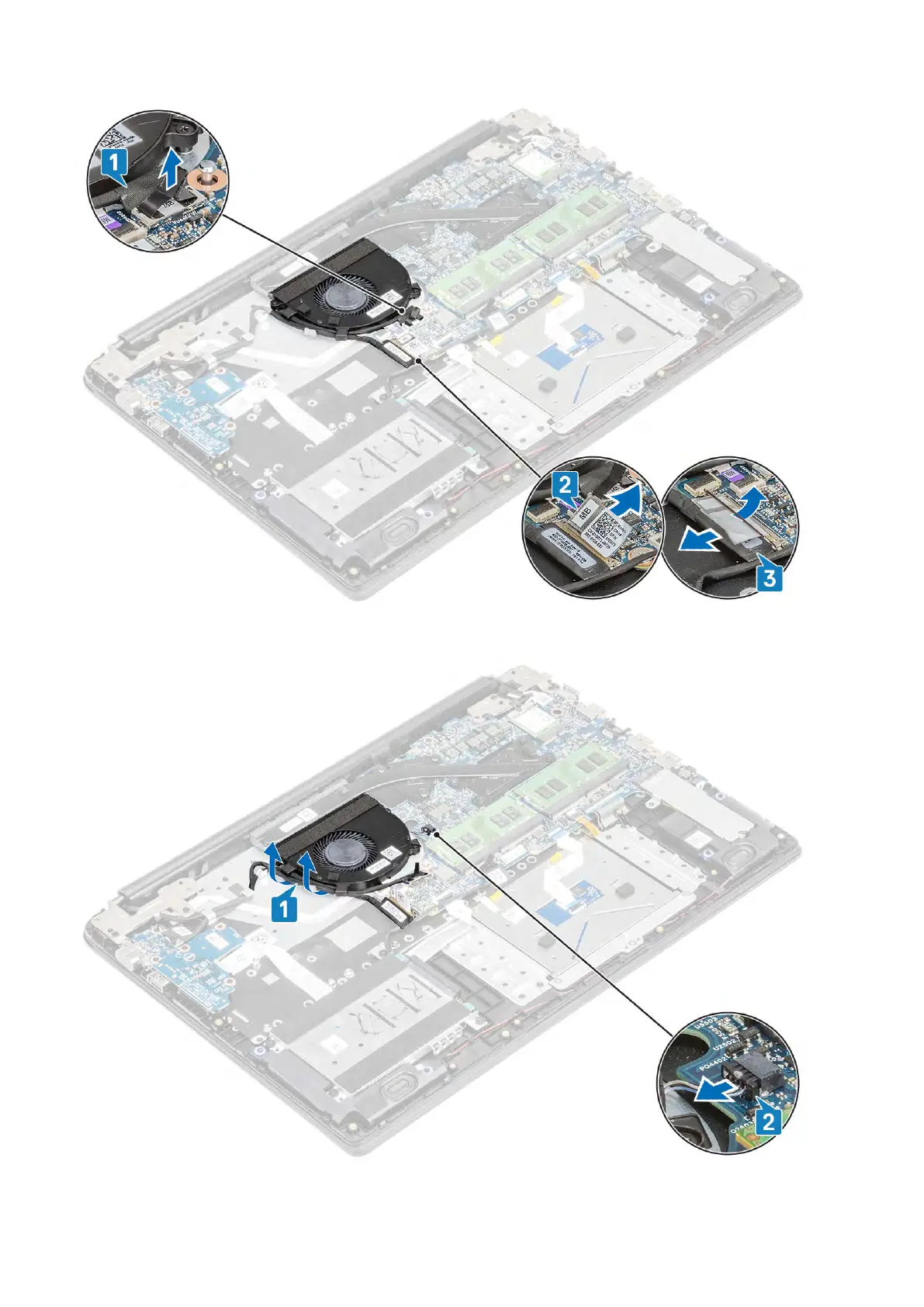

2. Unroute the VGA board cable and the display cable from the routing guides on the fan [1].
3. Disconnect the fan cable from the system board [2].
4. Remove the two (M2x3) screws that secure the fan to the palmrest and keyboard board assembly [1].
