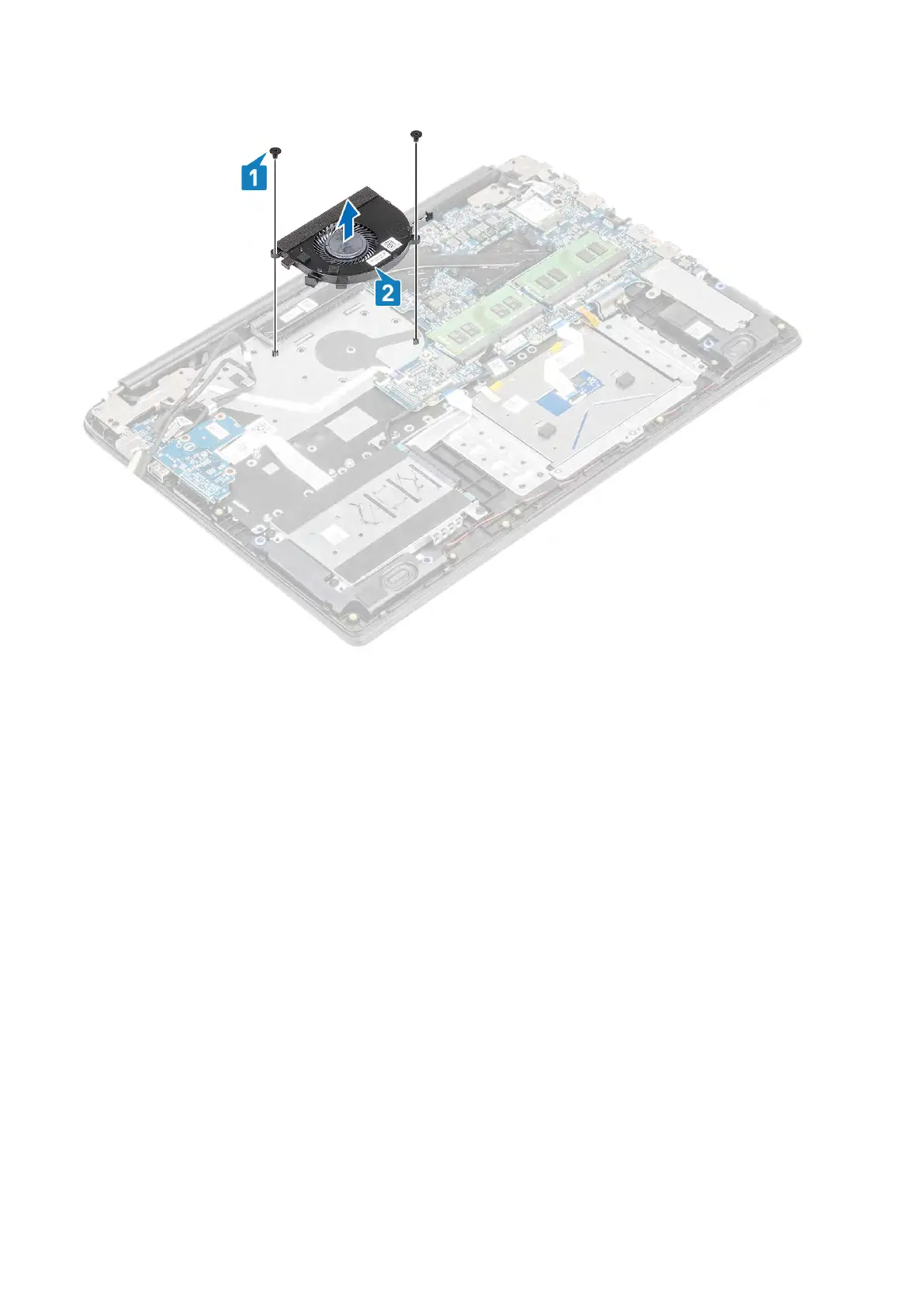

5. Lift the fan off the palmrest and keyboard board assembly [2].
Installing the system fan
Steps
1. Align the screw holes on the fan with the screw holes on to the palm rest and keyboard board assembly [1].
2. Replace the two (M2x3) screws that secure the fan to the palm rest and keyboard board assembly [2].
