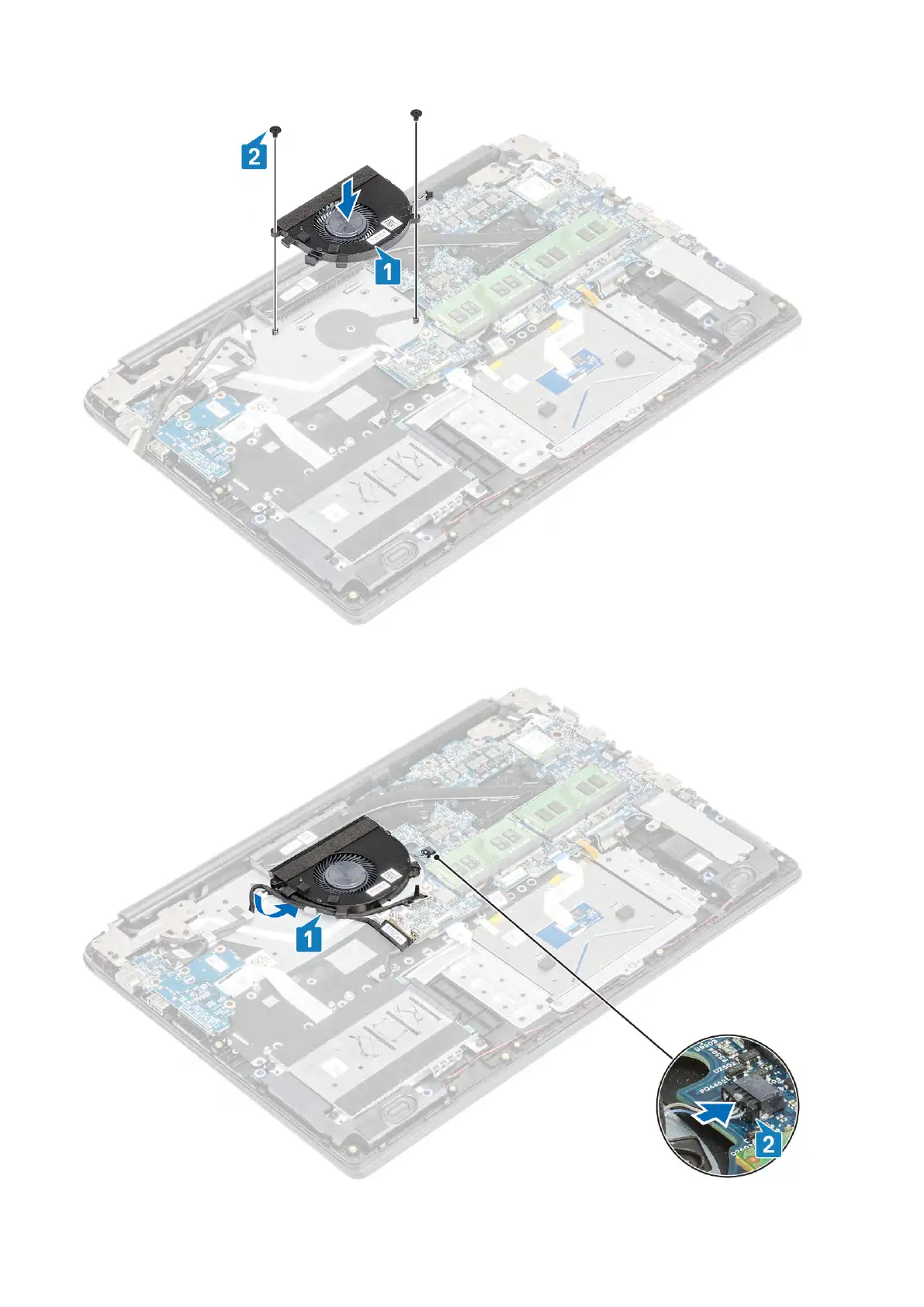

3. Route the VGA board cable and the display cable through the routing guides on the fan [1].
4. Connect the fan cable to the system board [2].
62 Removing and installing components
