Dell P86F - Page 75

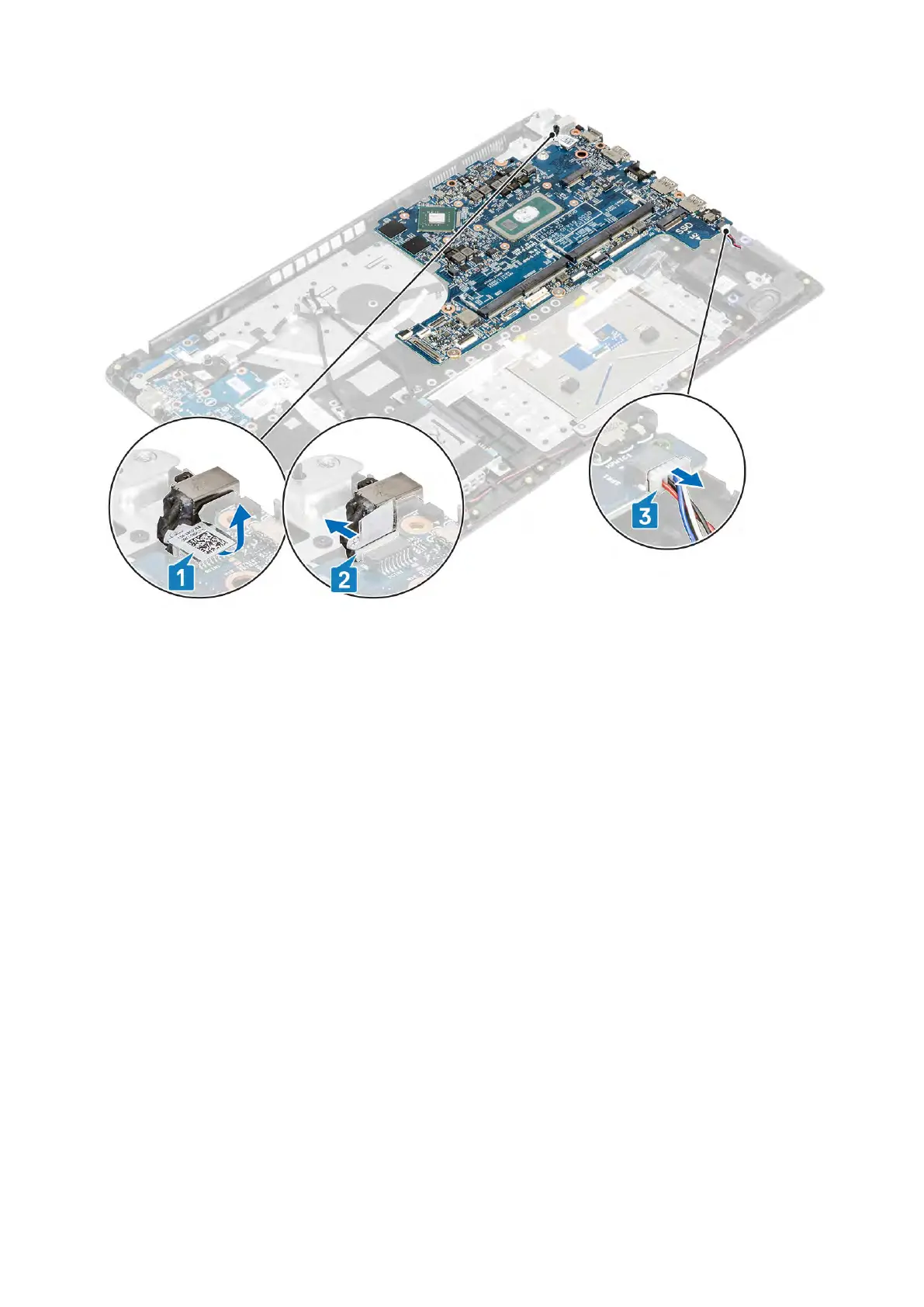

3. Remove the two (M2x3) and two (M2x2) screws that secure the system board to the palmrest and keyboard assembly [1].
4. Lift the system board off the palm-rest and keyboard assembly [2].
Removing and installing components 75
