Installing the system board
Steps

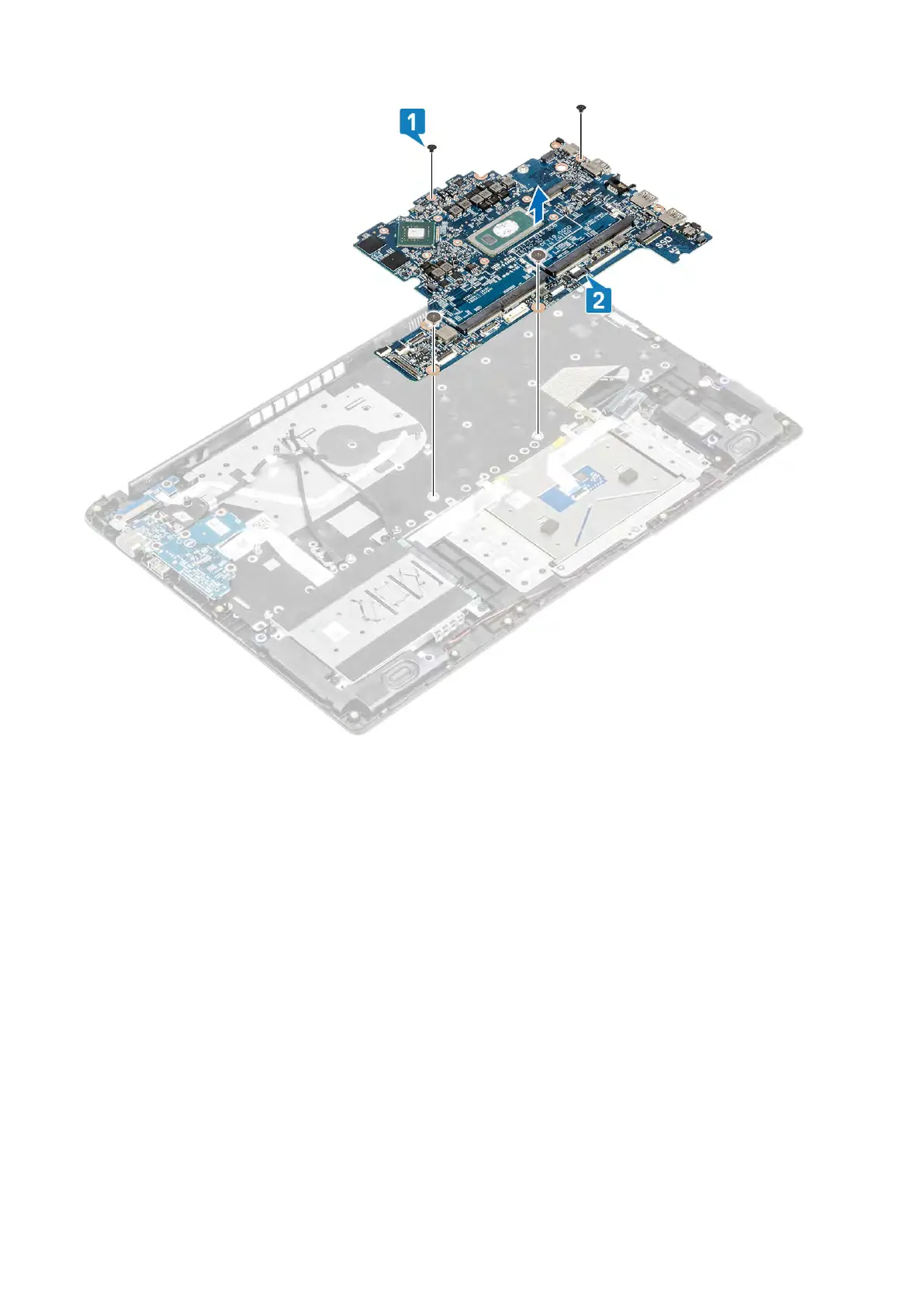

1. Align the screw hole on the system board with the screw hole on the palmrest and keyboard assembly [1].
2. Replace the two (M2x3) and two (M2x2) screws that secure the system board to the palmrest and keyboard assembly [2].
