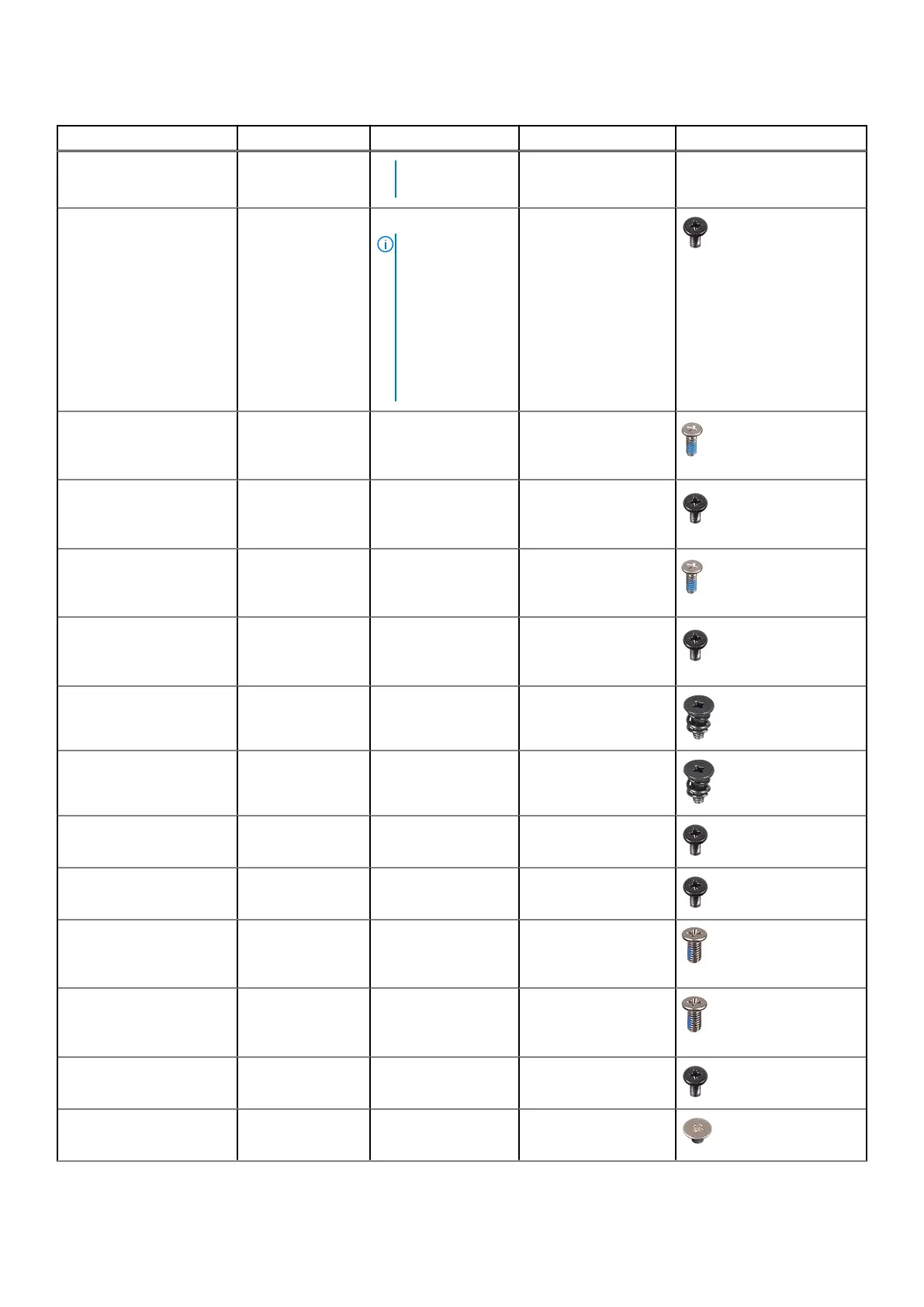

Table 1. Screw list (continued)

Component Secured to Screw type Quantity Screw image

and keyboard

assembly.

Solid-state drive thermal

bracket (SSD2 slot)

System board and

palm-rest and

keyboard assembly

M2x4

NOTE: This

screw is also

one of the

seven screws

that secures

the battery to

the palm-rest

and keyboard

assembly.

Left fan System board and

palm-rest and

keyboard assembly

M1.6x4 1

Left fan System board and

palm-rest and

keyboard assembly

M2x4 2

Right fan System board and

palm-rest and

keyboard assembly

M1.6x4 1

Right fan System board and

palm-rest and

keyboard assembly

M2x4 2

Heat sink (for integrated

graphics card)

System board M2x6.5 (captive

screw)

Heat sink (for discrete

graphics card)

System board M2x6.5 (captive

screw)

I/O board Palm-rest and

keyboard assembly

M2x4 3

Display-cable bracket Palm-rest and

keyboard assembly

M2x4 2

Left hinge System board and

palm-rest and

keyboard assembly

M2.5x6 3

Right hinge System board and

palm-rest and

keyboard assembly

M2.5x6 3

System board Palm-rest and

keyboard assembly

M2x4 3

Antenna (left) Palm-rest and

keyboard assembly

M2x2 4

Removing and installing components 9
