8 Getting Started Guide

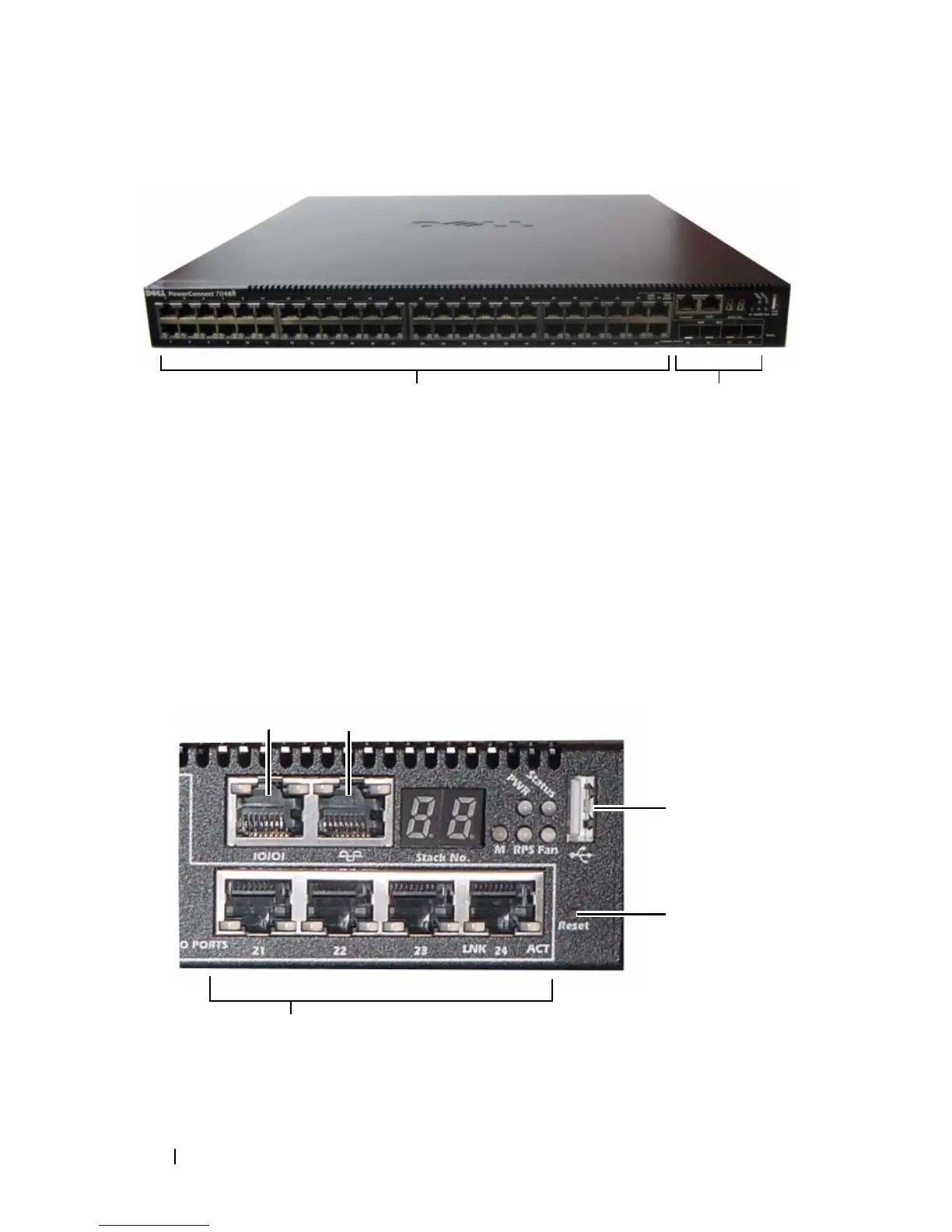

Figure 1-6. PowerConnect 7048R with 48 10/100/1000BASE-T Ports
In addition to the switch ports, the front panel of each model in the series
includes the following ports:
• Console port
• Out-of-band management port
• USB port
The additional ports are on the right side of the front panel.
Figure 1-7. Additional PowerConnect 7000 Series Ports
Combo Ports
10/100/1000BASE-T Auto-sensing
Full Duplex RJ-45 Ports
Combo Ports
Reset Button
USB Port
Console Port Out-of-Band Management Port
