Dell PowerConnect Zeiss 7048 User Manual

Configuring a Captive Portal 469
Client Summary
Use the Client Summary page to view summary information about all
authenticated clients that are connected through the captive portal. From
this page, you can manually force the captive portal to disconnect one or
more authenticated clients. The list of clients is sorted by client MAC
address.
To display the Client Summary page, click System
→ Captive Portal →
Client Connection Status
→ Client Summary.

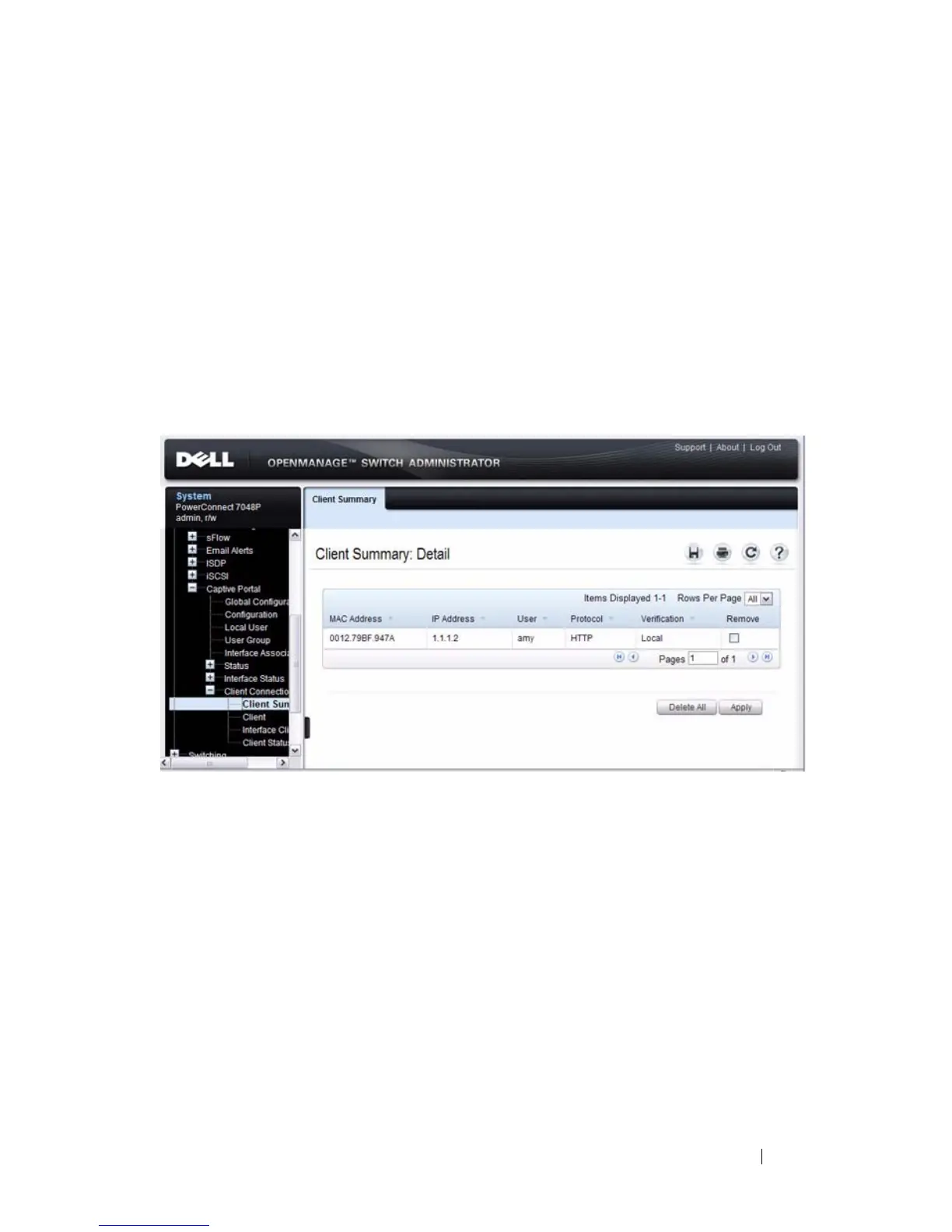

Figure 17-23. Client Summary
To force the captive portal to disconnect an authenticated client, select the
Remove check box next to the client MAC address and click Apply. To
disconnect all clients from all captive portals, click Delete All.

Dell PowerConnect Zeiss 7048 Specifications

General

Model	Dell PowerConnect 7048
Jumbo Frame Support	9 KB
Management	Web-based, CLI, SNMP
Weight	8.3 kg
Power Supply	100-240V AC, 50-60Hz
Dimensions (H x W x D)	1.72 x 17.32 x 16 in (43.7 x 440 x 406 mm)
