Snooping and Inspecting Traffic 795

DHCP Snooping Static Bindings Configuration

Use the DHCP Snooping Static Bindings Configuration page to add static

DHCP bindings to the binding database.

To access the DHCP Snooping Static Bindings Configuration page, click

Switching

→

DHCP Snooping

→

Static Bindings Configuration in the

navigation panel.

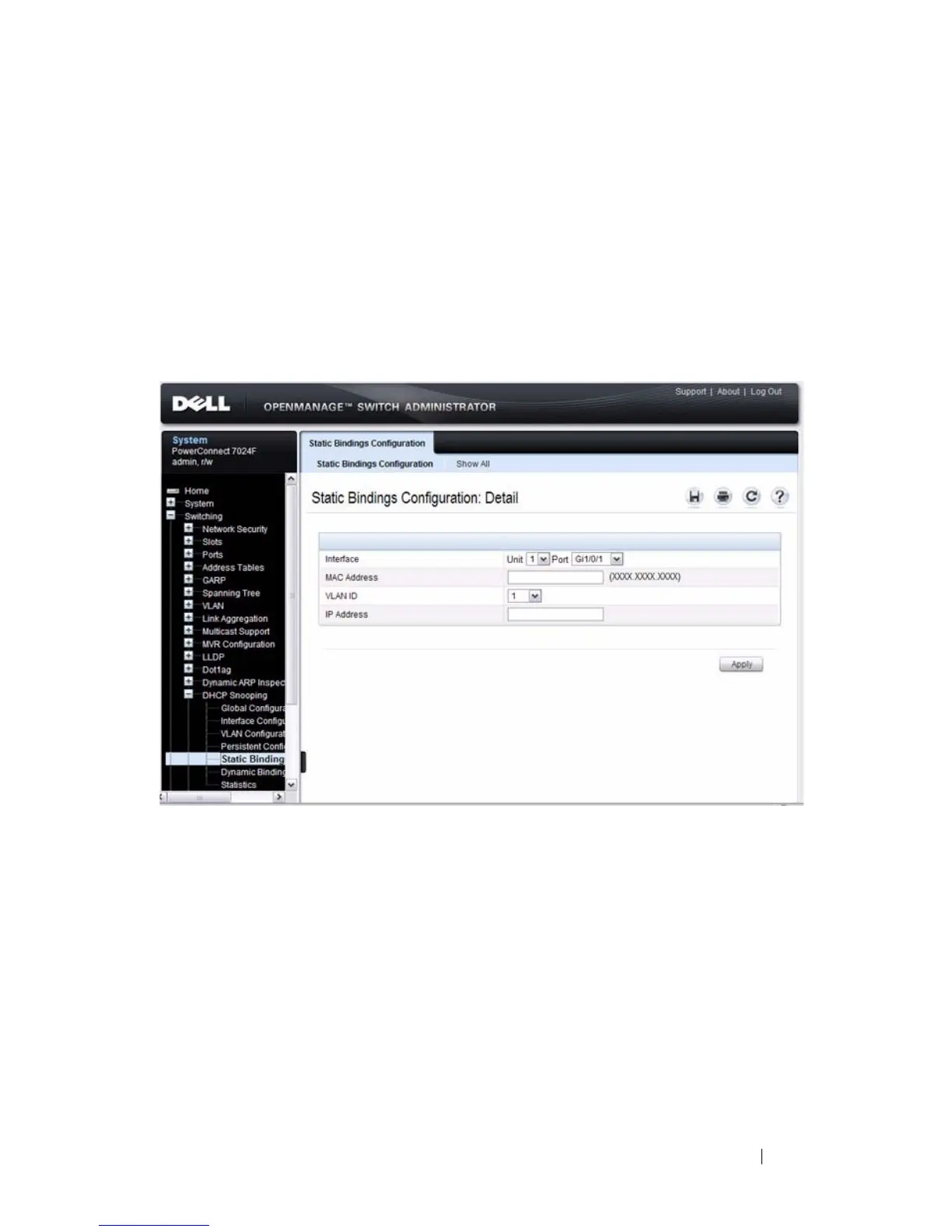

Figure 27-8. DHCP Snooping Static Bindings Configuration

Default Chapter1
- Series Switch1
- Notes and Cautions2
- Table of Contents3
