11 PowerEdge C6220 Technical Guide
2 Chassis views and features
The Dell PowerEdge C6220 rack server is a 2U rack system that can support one to four
independent server node options. The Power Edge C6220 chassis is available in three versions:
 One supports 12 x 3.5-inch SAS/SATA drives
 Two support up to 24 x 2.5-inch SAS/SATA drives with a passive or expander backplane
A PowerEdge C6220 system consists of the PowerEdge C6000 enclosure and an optional number
of compute sleds.
Front panel
The front panel on the PowerEdge C6220 chassis, as shown in Figure 1 and Figure 2, contains the
power buttons and LEDs for each server node, and the hard drive bays and LEDs.

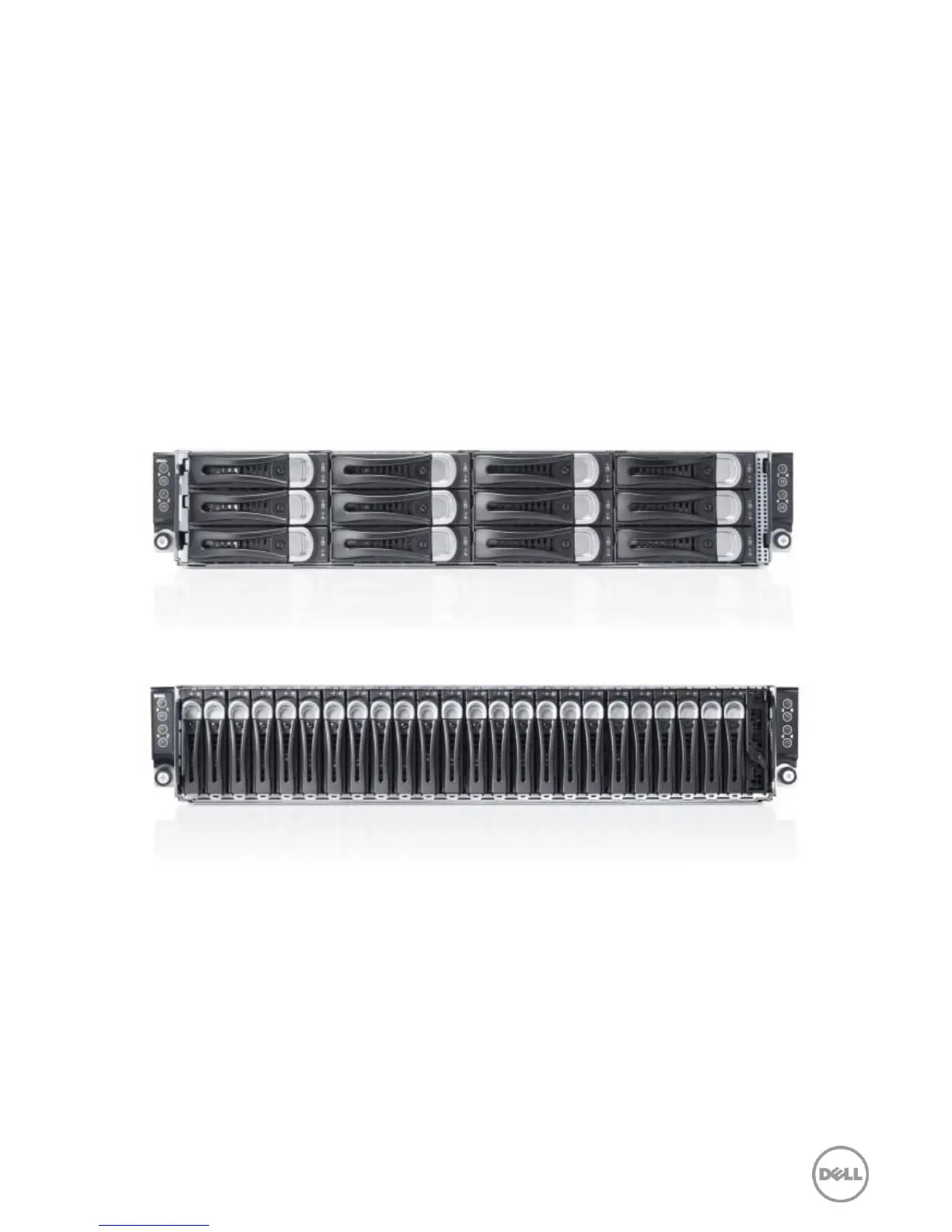

Figure 1. 3.5-inch two- and four-system board chassis
Figure 2. 2.5-inch two- and four-system board chassis
Back panel
The fans, power supplies and connectors (USB, NIC, serial and Ethernet) are on the back panel of the
PowerEdge C6220 chassis, as shown in Figure 3.
