14 PowerEdge C6220 Technical Guide

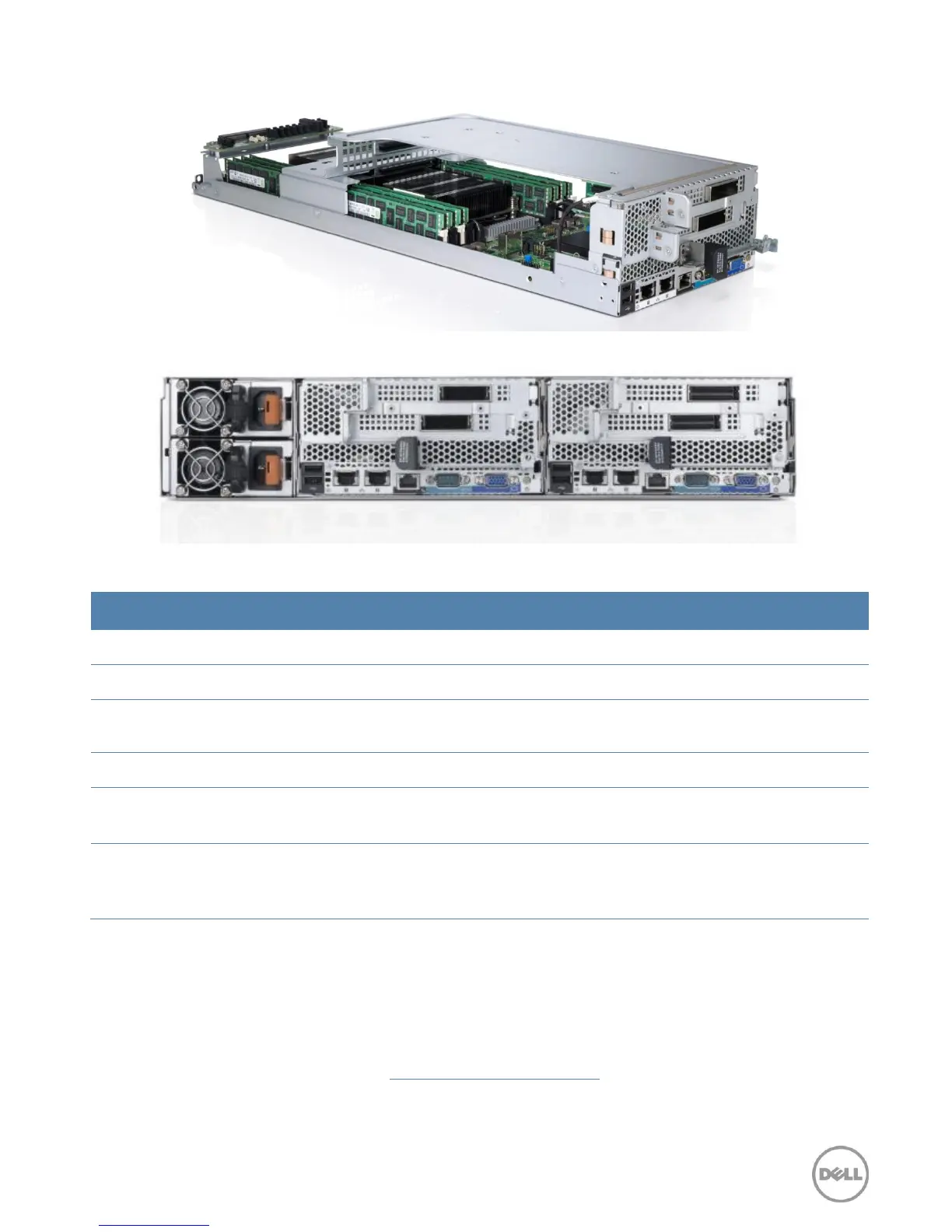

Figure 7. 2U sled — side view
Figure 8. 2U sled — back view
Table 5. PowerEdge C6220 1U and 2U sled features and comparisons
The PowerEdge C6220 chassis is available with multiple drive size and backplane options. The base
chassis remains the same, but installed backplanes determine drive size and capability. The number
of drives per sled depends on the number of compute sleds installed as well as the backplane
selected.
For additional information on PowerEdge C6220 backplanes, see the Dell PowerEdge C6220
Systems Hardware Owner’s Manual on Dell.com/Support/Manuals.
Category
1U sled
2U sled
Height
1 rack unit (1.75 inches)
2 rack units (3.5 inches)
Number of system boards
1
1
Maximum number of
sleds in a C6000 chassis
4
2
Custom mezzanine slots
1 x8 PCIe 3.0
1 x8 PCIe 3.0
PCIe slots
1 x16 PCIe 2.0, low profile, half length
1 x16 PCIe 2.0, full height, half-length
1 x16 PCIe 2.0, full height, full length
Midplane connections
1 midplane connection:
power, control, 6 SATA/SAS
2 midplane connections:
bottom = power, control, 4 SATA/SAS
top = 4 SATA/SAS
