Dell PowerEdge R415 - Installing an iDRAC6 Enterprise Card

Installing System Components 115
8 Replace the plastic filler plug over the port at the system back panel.
See "Back-Panel Features and Indicators" on page 17 for the port location.
9 Replace the system board shroud. See "Installing the System Board
Shroud" on page 110.
10 Close the system. See "Closing the System" on page 83.
11 Reconnect the system to its electrical outlet and turn the system on,
including any attached peripherals.

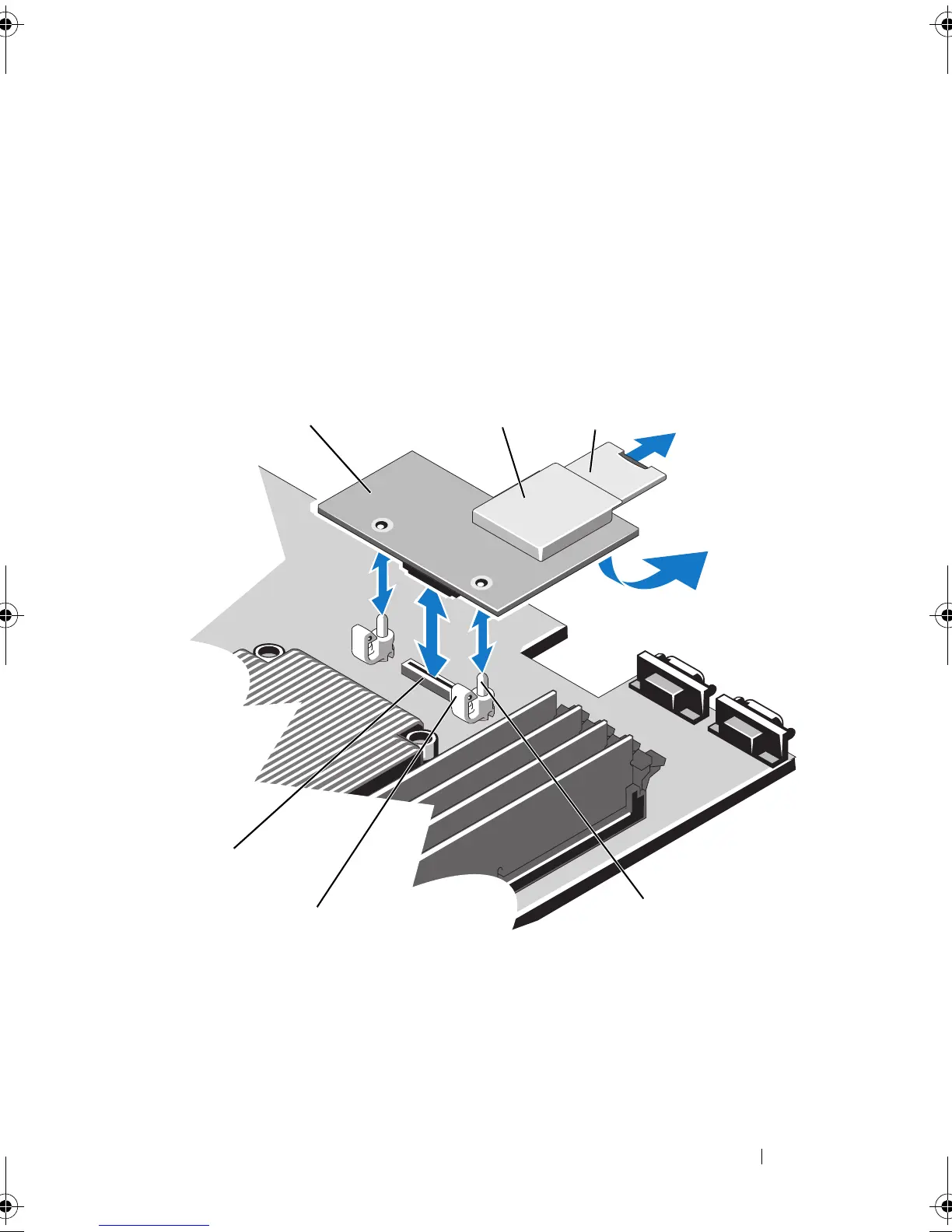

Figure 3-19. Removing and Installing an iDRAC6 Enterprise Card
1 iDRAC6 Enterprise card 2 VFlash media slot
3 VFlash SD card 4 retention standoff post (2)
5 retention standoff tab (2) 6 iDRAC6 Enterprise card connector
