Dell PowerEdge T20 - NIC Indicator Codes

Item Indicator, Button, or
Connector
Icon Description
7 USB connectors (2) Allow you to connect USB devices to the system. The
ports are USB 3.0 compliant.
8 Video connector Allows you to connect a VGA display to the system.
9 Line-out connector Allows you to connect other output devices to the system.
10 Line-in/microphone
connector
Allows you to connect other external audio devices to the
system.
11 Expansion card slots (4) Allow you to connect up to three full-height PCIe
expansion cards and one full-height PCI expansion card.
12 Security-cable slot Allows you to connect a cable lock to the system.
13 Padlock ring Locks the cover release latch.
14 Ethernet connector
One integrated 10/100/1000 Mbps NIC connector.
15 USB connectors (4) Allow you to connect USB devices to the system. The
ports are USB 2.0 compliant.
16 Serial connector Allows you to connect a serial device to the system.
NIC Indicator Codes

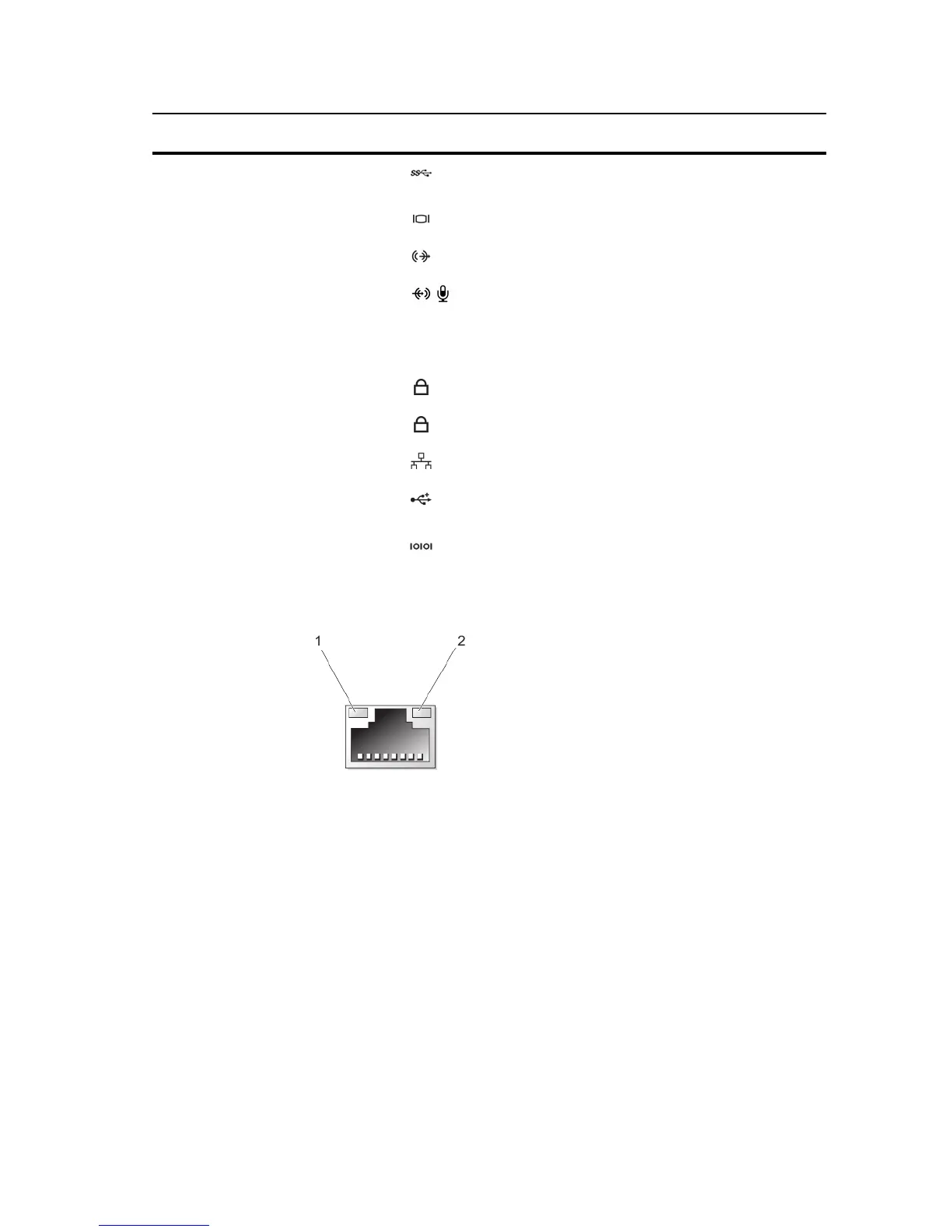

Figure 3. NIC Indicator Codes
1. link indicator
2. activity indicator
Indicator Indicator Code
Link integrity light on
integrated network
adapter
Green — a good 10 Mbps connection exists between the network and the system.
Green — a good 100 Mbps connection exists between the network and the system.
Orange — a good 1000 Mbps connection exists between the network and the system.
Off (no light) — the system is not detecting a physical connection to the network.
